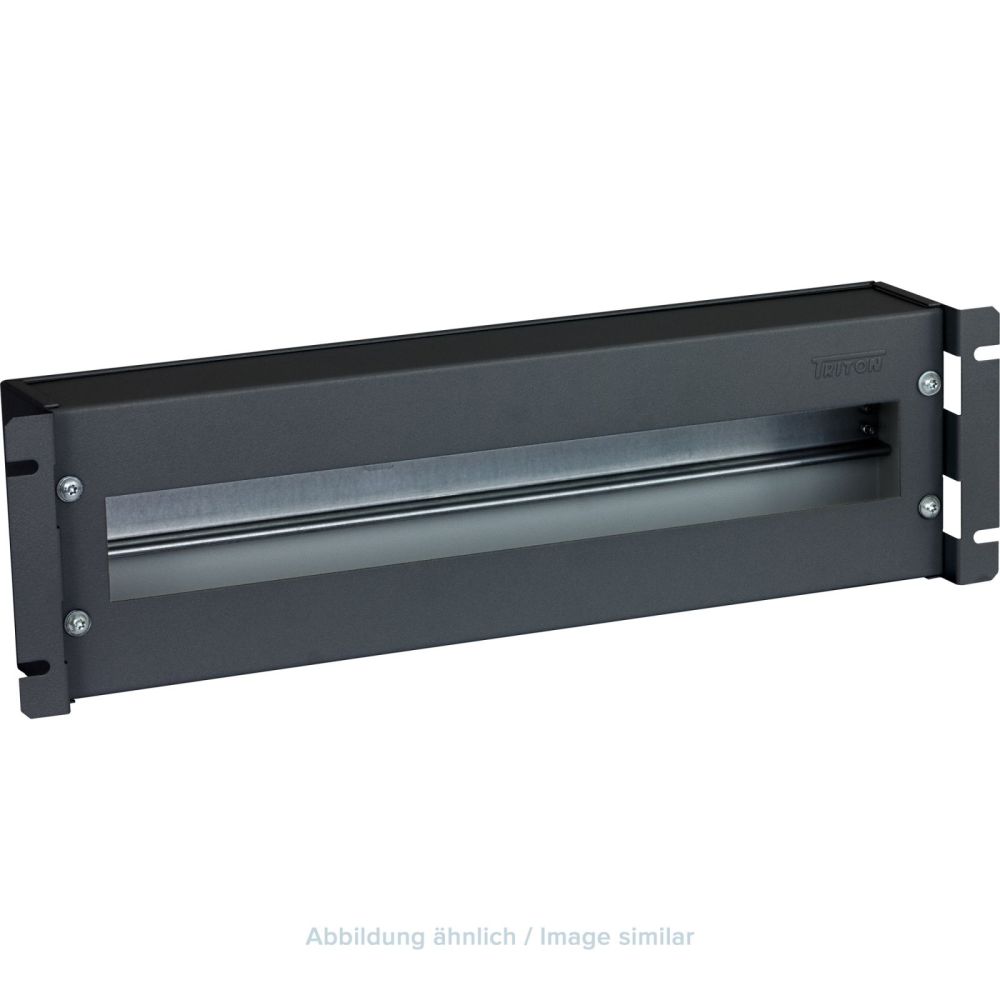

Triton RAB-JL-X02-A1 48,3 cm ( 19 inch ) enclosure, with protective switch strip (hut rail, DIN), 3 U, black, with cover content_copy

The Triton circuit breaker strip, type RAB-JL-X02-A1, is a 48,3 cm ( 19 inch ) accessory module for use in server and network enclosures. It is designed for the safe mounting and management of circuit breakers and other devices on a DIN rail. The strip is finished in black (RAL9005) and offers a height of 3 U, making it suitable for use in standard 48,3 cm ( 19 inch ) racks. The installation depth is approximately 8 cm, allowing it to be easily integrated into enclosures with limited rear mounting space. The rear side of the strip is closed, providing additional protection against dust and foreign objects.

Circuit breaker strip

The strip is designed as a modular, disassemblable unit, allowing it to be flexibly adapted to specific requirements. It features an integrated DIN rail, enabling direct mounting of circuit breakers and other DIN-compliant components. The cover ensures a neat and closed front appearance, enhancing the overall look of the rack. The construction is designed for use in professional IT and electrical installations.

Applications

The circuit breaker strip is primarily intended for use in 48,3 cm ( 19 inch ) server and network enclosures, particularly in environments where structured and secure mounting of circuit breakers is required. It is suitable for applications in data centers, IT infrastructures, telecommunications installations, and industrial control systems. The closed rear side and robust construction also make it suitable for environments with high dust exposure.

Functions and equipment in detail

The strip is equipped with a DIN rail that meets the standard for mounting electrical components. The DIN rail allows for the installation of circuit breakers, relays, control devices, and other DIN-compatible modules. The cover is permanently integrated, ensuring a clean front appearance. The disassemblable design allows for individual adjustment of length to optimize the number of mountable modules. The strip is designed to accommodate up to 22 modules, offering high flexibility in device arrangement.

Technology explained simply

The 3 U height corresponds to a standard dimension in 48,3 cm ( 19 inch ) technology, enabling installation in racks with typical module height. The installation depth of approximately 8 cm is sufficient for many enclosure configurations, especially when devices do not extend deeply into the enclosure. The DIN rail is a universally used mounting system, widely adopted in electrical engineering and IT infrastructure. The closed rear side protects against unauthorized access and prevents dust or moisture ingress.

Compatibility and accessories

The circuit breaker strip is compatible with a wide range of DIN-mounted devices, particularly circuit breakers, relays, and control modules. Suitable accessories include various PDU models (Power Distribution Units) such as the PDU ATS Switch 48,3 cm ( 19 inch ) 12xIEC-C13 230V/10A, the PDU Basic 20x IEC-320 outlets 230 V/10 A, and other variants with different connection options. Additionally, a 48,3 cm ( 19 inch ) accessory device holder for DIN rail devices, T150 mm/3HE, light gray, front mounting, is available as a complementary module. These components can be integrated together with the circuit breaker strip in a rack system to ensure structured power distribution and device management.

Mounting and installation

Mounting is performed in a 48,3 cm ( 19 inch ) rack by securing it to the side mounting holes. The disassemblable construction allows for length adjustment according to the number of modules to be installed. The DIN rail is already integrated, so no additional mounting elements are required. The cover is permanently installed and requires no additional fastening. Installation is tool-free, with exact mounting instructions depending on the specific rack system.

Operational advantages

The circuit breaker strip provides clear structuring of devices within the rack, simplifying maintenance and inspection. The integrated DIN rail reduces the need for additional mounting components. The closed rear side enhances safety and prevents foreign objects from entering. The disassemblable design allows flexible adaptation to different requirements without needing additional modules. The robust construction ensures long service life in professional applications.

Technical data
Length packaging	0.484m
Packaging volume	0.0050m³
Weight	1.610kg
Type	Circuit-breaker strip
Colour	Black (RAL9005)
Height unit	3U
Height packaging	0.085m
Width packaging	0.135m

---
