Triton 48,3 cm ( 19 inch ) accessory Fan module, 2U, 4Lüfter, black, front, content_copy

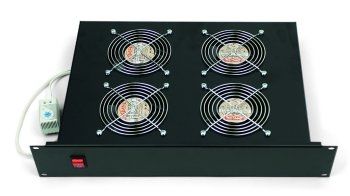

The Triton RAB-CH-X02-A1 is a 48,3 cm ( 19 inch )" fan insert for front mounting in standard 48,3 cm ( 19 inch )" racks, designed for ventilation and cooling of IT and electronic devices in server and network enclosures. The unit has a height of 2HE (rack units) and is finished in black (RAL9005). It provides active air circulation and heat dissipation to regulate the operating temperature within the enclosure and ensure sufficient cooling of installed components.

Applications
This fan insert is designed for use in 48,3 cm ( 19 inch )" racks, particularly in server and network enclosures where targeted ventilation is required. It is suitable for applications in data centres, IT infrastructures, telecommunications installations, and technical rooms where electronic devices are operated continuously. The horizontal mounting on the front side of the enclosure enables efficient airflow from front to back, improving heat dissipation from rear-mounted devices.

Functions and Features in Detail
The unit features four active fans, each delivering an airflow rate of 160 m³/h. The fans are rated at 35 W per unit and operate at a supply voltage of 220 V. The total power consumption of the unit is 60 W at a supply voltage of 240 V and a frequency of 50/60 Hz. A red-lit on/off switch allows visual monitoring of the operating status. Additionally, an integrated bimetal thermostat is included, with an adjustable switching temperature range between 0 °C and +60 °C, enabling automatic fan activation when a predefined temperature is reached.

Technology Explained Simply
The four fans ensure continuous air circulation within the enclosure, extracting warm air from the devices and replacing it with cooler air. The airflow rate of 160 m³/h per fan results in a high overall ventilation rate, sufficient for cooling multiple devices. Power supply is via mains, with an operating voltage of 240 V. The integrated temperature control via the bimetal thermostat ensures that the fans are only activated when the ambient temperature reaches a specific threshold, enabling energy savings and noise reduction.

Compatibility and Accessories
The fan insert is designed for mounting in standard 48,3 cm ( 19 inch )" racks and fits enclosures with a minimum height of 2HE. Mounting is performed on the front side of the enclosure. The delivery includes four M6x16 screws, four plastic washers, and four cage nuts required for securing the unit in the rack. The black finish (RAL9005) ensures visual compatibility with typical server and network enclosures.

Installation and Mounting
Mounting is performed on the front side of the 48,3 cm ( 19 inch )" rack. The designated mounting holes and included fastening components (screws, plastic washers, cage nuts) allow for secure and stable installation. The electrical power cord must be connected to a suitable socket. The fan insert should be positioned to ensure unobstructed air intake and exhaust, with airflow directed from front to back within the enclosure.

Operational Advantages
The integrated temperature control via the bimetal thermostat enables automated and energy-efficient operation. Fans are activated only when needed, reducing power consumption and minimizing noise during operation. The high total airflow rate of 640 m³/h (4 x 160 m³/h) ensures effective cooling even at high device density. Front mounting allows easy integration into existing enclosure configurations without requiring additional internal space. The robust construction and use of standard fastening components simplify installation and maintenance.

Scope of Delivery

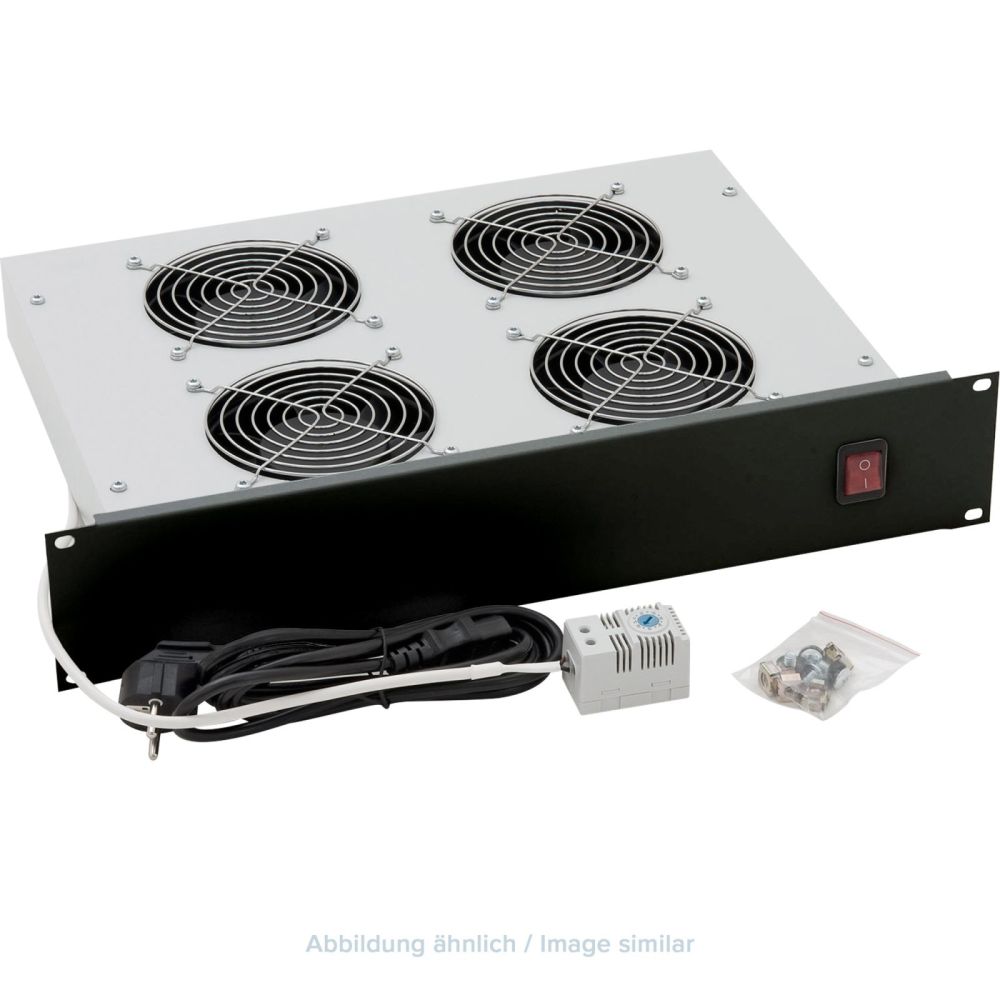

The delivery includes four M6x16 screws, four plastic washers, and four cage nuts required for mounting in the 48,3 cm ( 19 inch )" rack. The electrical power cord is also part of the unit.

Technical data
Width packaging	0.320m
Colour	Black (RAL9005)
Length packaging	0.500m
Height packaging	0.095m
Weight	5.190kg
Number of fans	4
Packaging volume	0.0152m³
Mounting	19" rackmount

---
