TLED 384395 tempLED RayLance V2 145 - 90 5000 K 26,100 lm 145 W 90° 180 lm/W DALI

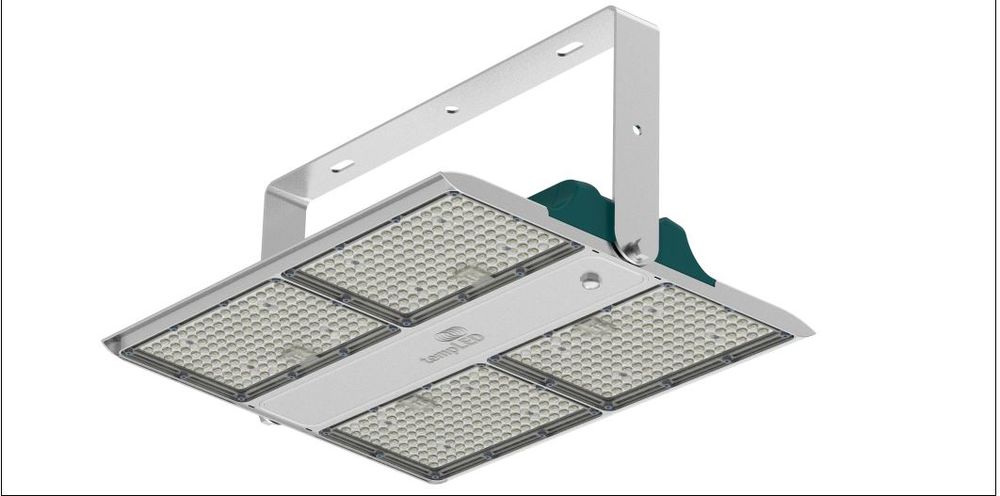

tempLED hall and sports hall light RayLance V2 145 - 90 5000K, narrow, wide beam light distribution, system power: 145 watts, system power tolerance: ± 10 percent, initial luminous flux: approx. 26,100 lumens, luminous flux tolerance: ± 10 percent, beam angle: 90 degrees, initial, most similar color temperature: 5,000 Kelvin, initial color rendering index Ra > 80, initial color consistency: < 5 SDCM, four LED light fields with a life expectancy (L70B10C1) of at least 100,000 h, (L90B10C1) of at least 50,000 h, photobiological safety according to IEC/TR 62778: 1, temperature class according to ATEX product directive 2014/34/EU: T5, Tc temperature: +90° Celsius, DALI dimmable constant current power supply with temperature monitoring, input voltage: AC 90 to 240 volts - 50/60 Hertz / DC 140 to 250 volts with surge protection, silver gray (RAL9006), light housing made of die-cast aluminum suitable for outdoor areas with pressure compensation membrane against condensation formation in protection class IP 66, protection class: I, can be used at temperatures from -30 to +50° Celsius, overheating protection, four UV-resistant optics of the light field made of impact-resistant and shatter-proof polycarbonate according to standard IK08, mounting bracket with 0/90 degree swivel range, five-pole connection cable with a length of 2.50 meters, dimensions: length: 380 mm, width: 340 mm, height: 210 mm, 5 year guarantee, 10 year spare parts guarantee, ENEC Certification, D mark, all central components of the luminaire (power supply, optics and light fields) are modularly interchangeable or can be supplemented. Constant current control (CLO), Casambi or emergency lighting module optional. Certificate for ball throwing safety in preparation. Sales unit: 1 ST.
Type: 384395
