Titan TTC-SC38+ toilet fan content_copy

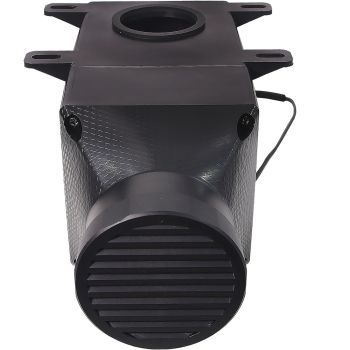

Titan TTC-SC38+ toilet fanEasy removal of the cassette
Filters unpleasant odours directly to the outside
Simple installation
Ø 8cm fan, waterproof and quiet
Suitable for Thetford C250/C260
Fan specificationsFan dimensions 80x80x25 (high pressure)
External dimensions incl. frame 208x128x86mm
Input voltage 7 VDC
Nominal voltage 12VDC
Operating voltage range 7~13.8VDC
Rated current 0.4A
Power consumption (Watt) 4.8W
Fan speed 1200 - 4200RPM
Airflow 20 - 59CFM
Static pressure 4.9 - 8.26mm H2O
Noise level 25 - 50 dBA
Bearing type double ball bearing
Service life 50,000 hours
Watertightness IP55
Cable length 3M
Mounting kits incl.
Only suitable for cassettes with downward venting valves.
(In our case Thetford C2635)
If you remove the toilet cassette, there is a flap that you can open.
Our motorhome (Challenger) has a 30 mm pipe as standard, but this is not fitted ex works in all models.
To retrofit this, you can buy a very simple pipe with a diameter of 30 mm from a DIY store and fit it yourself.
Please note that the pipe must protrude approx. 20 mm from the floor.
Our fan will then be attached to this pipe.
Proceed as follows:A cable comes down to connect the fan
Place our fan on the tube and fasten it to the base with the 4 screws supplied.
An aluminium rail is supplied, which can be bent at a 90° angle for the appropriate position, where our microswitch is also installed. This is installed so that the microswitch is directly on the U-profile for the cassette flap, so that the U-profile comes against the microswitch when the toilet is opened to activate the fan. if this is the case, the aluminium rail must be glued to the side. Please note that the microswitch must be firmly pressed in.
Another cable is installed at the top of the side, which you must connect to 12V.
After connection, a carbon filter is inserted to eliminate any odours, this is closed with the cover and the cassette can be reinserted.
If everything is installed correctly, our fan switches on as soon as you open the toilet. When you close the toilet again, our fan switches off again.
The speed of the fan can be changed using the toggle switch supplied; there will be two speed levels.
In the event that the cassette is too full and liquid gets through the pipe to our fan, our fans will not be damaged as we have installed a flap that allows the liquid to flow directly onto the floor.

Technical data
Height packaging	0.117m
Youtube video	https://www.youtube.com/embed/5A8XUzMeCnc
Nominal voltage	12V DC
Power connection	Not specified
Bearing	Two ball
Weight	0.822kg
Width packaging	0.224m
Operating time (approx.)	50000h
Rated speed	1200-4200rpm
Power consumption	4.8W
Airflow	965.35-2836.27m³/h
Length packaging	0.245m
Packaging volume	0.0010m³
Fan dimensions (LxW)	80x80mm
Rated current	0.4A
Noise level	25-50dB(A)
Cable length	3m
Temperature controlled
Speedo signal

---
