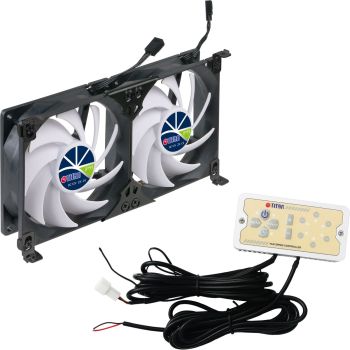

Titan TTC-SC22(A)/V2
+ double refrigerator fan 92x25mm IP55 for camping content_copy

Double refrigerator fan TTC-SC22(A)/V2+ with integrated rectifier for camping vehicles and hook strip for easy attachment directly to the ventilation grille (tested on Dometic ventilation grilles).
This double fan is versatile and suitable for motorhomes, caravans, camper vans and lorries. It is ideal as a refrigerator fan or for powering home cinema, audio/video cabinets, home servers and network systems. The double fan comes pre-assembled in an aluminium mounting frame.
Product features:
With integrated rectifier
With timer mode, selectable in 6 steps (10 min, 30 min, 1 hour, 2 hours, 3 hours, 4h)
Automatic temperature control
From 20 °C and below, the fans switch off automatically
Between 20 °C ~ 45 °C, the fan speed is automatically regulated depending on the temperature
&above 45 ° C, the fans run automatically at maximum speed.
Dust-protected and protected against water jets in accordance with IP 55, therefore also suitable for outdoor use
Hook strip for easy attachment directly to the ventilation grille; Ventilation grille (tested on Dometic ventilation grilles)
Equipped with exclusive TITAN 9-blade (Kukri) fans for quiet operation
Size including Frame = 18.4 x 9.2 x 3. 0 cm (WxHxD)
Scope of delivery
Double fan, pre-assembled
Speed control
Fastening material
Technical data
Speed control
Input voltage
: 12 V DC
Output voltage
: 7 V ~13.8 V
max. Output current
: 1 A
Current consumption
: 0.05A
Temperature measurement
:   20 to 45°C
Kukri-Lüfter
External dimensions
: 2 pcs. 92 x 92 x 25 mm
External dimensions incl. frame
: 184 x 92 x 30mm
Input voltage
: 7 V DC
Nominal voltage
: 12 V DC
Operating voltage range
: 7 ~ 13. 8 V DC
Nominal current
: 0.48 A
Power consumption (watts)
: 5. 76 W
Fan speed
: 500 - 2600 ± 10% rpm
Airflow
: 35. 34 - 180.10 m³/h
Static pressure
: 0.15 - 0.30 mbar
Noise level
: 5 - 28. 0 dBA
Bearing type
: Z-bearing - IP 55
Lifetime
: 50. 000 h
Cable length
: 2 m
Mounting kits
incl.

Technical data
Bearing	Z axis
Rated speed	500-2600rpm
Height packaging	0.053m
Operating time (approx.)	50000h
Material	Plastic
Noise level	5-28dB(A)
Packaging volume	0.0033m³
Cable length	2m
Rated current	0.48A
Weight	0.538kg
Fan blades	9
Length packaging	0.285m
Fan dimensions (LxW)	92x92x25mm
Power consumption	5.76W
Width packaging	0.155m
Airflow	35-180m³/h
Power connection	Wire +/-
Nominal voltage	12V DC
Temperature controlled
Speedo signal

---
