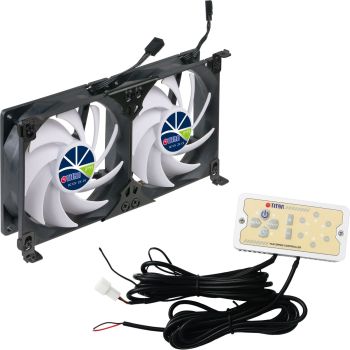

Titan TTC-SC22(C)/V2
+ double refrigerator fan 140x25mm IP55 for camping
|
58,27 EUR |
|
|
( 69,34 EUR incl. VAT ) ≈ £48.83 | ≈ $64.85 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 31.12.2026info_outline | |
| Lieske Part No.: | 22194414 |
|---|---|
| Mfg Part No: | TTC-SC22(C)/V2 |
| UPC/EAN: | 4260153572915 |
| Weight: | 0.761 kg |
Product information for Titan TTC-SC22(C)/V2+:
This double fan is versatile and suitable for motorhomes, caravans, camper vans and lorries. It is ideal as a refrigerator fan or for powering home cinema, audio/video cabinets, home servers and network systems. The double fan comes pre-assembled in an aluminium mounting frame.
Product features:
With integrated rectifier
With timer mode, selectable in 6 steps (10 min, 30 min, 1 hour, 2 hours, 3 hours, 4h)
Automatic temperature control
From 20 °C and below, the fans switch off automatically
Between 20 °C ~ 45 °C, the fan speed is automatically regulated depending on the temperature
&above 45 ° C, the fans run automatically at maximum speed.
Dust-protected and protected against water jets in accordance with IP 55, therefore also suitable for outdoor use
Hook strip for easy attachment directly to the ventilation grille; Ventilation grille (tested on Dometic ventilation grilles)
Equipped with exclusive TITAN 9-blade (Kukri) fans for quiet operation
Size including. Frame = 29 x 14 x 3. 2 cm (WxHxD)
Scope of delivery
Double fan, pre-assembled
Speed control
Fastening material
Technical data
Speed control
Input voltage
: 12 V DC
Output voltage
: 7 V ~13.8 V
max. Output current
: 1 A
Current consumption
: 0.05A
Temperature measurement
: 20 to 45°C
Kukri-Lüfter
External dimensions
: 2 pcs. 140 x 140 x 25 mm
External dimensions incl. frame
: 290 x 140 x 32mm
Input voltage
: 7 V DC
Nominal voltage
: 12 V DC
Operating voltage range
: 7 ~ 13. 8 V DC
Nominal current
: 0.8 A
Power consumption (watts)
: 9. 6 W
Fan speed
: 500 - 1800 ± 10% rpm
Airflow
: 84. 44 - 303.88 m³/h
Static pressure
: 0.15 - 0.30 mbar
Noise level
: 6 - 28. 8 dBA
Bearing type
: Z-bearing - IP 55
Lifetime
: 60. 000 h
Cable length
: 2 m
Mounting kits
incl.
| Technical data | |
| Airflow | 84-304m³/h |
| Fan blades | 9 |
| Material | Plastic |
| Height packaging | 0.052m |
| Nominal voltage | 12V DC |
| Packaging volume | 0.0033m³ |
| Cable length | 2m |
| Rated current | 0.8A |
| Width packaging | 0.162m |
| Power connection | Wire +/- |
| Rated speed | 500-1800rpm |
| Operating time (approx.) | 60000h |
| Length packaging | 0.385m |
| Fan dimensions (LxW) | 140x140x25mm |
| Power consumption | 9.6W |
| Noise level | 6-29dB(A) |
| Weight | 0.761kg |
| Bearing | Z axis |
| Temperature controlled | |
| Speedo signal | |
Questions & answers
What is the delivery time of Titan TTC-SC22(C)/V2+ double refrigerator fan 140x25mm IP55 for camping?
The article Titan TTC-SC22(C)/V2+ double refrigerator fan 140x25mm IP55 for camping is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Titan TTC-SC22(C)/V2+ to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Titan TTC-SC22(C)/V2+ double refrigerator fan 140x25mm IP55 for camping always at the best possible price. We can give you a discount of 2% on Titan TTC-SC22(C)/V2+ double refrigerator fan 140x25mm IP55 for camping if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
