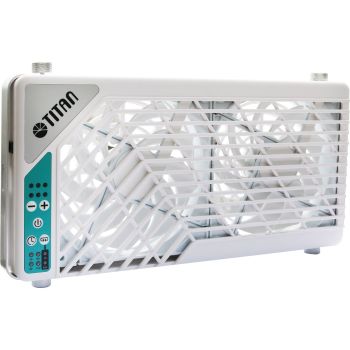

Titan TTC-SC21/V4
+ double window fan 2x140mm with remote control, for motorhomes
|
109,82 EUR |
|
|
( 130,69 EUR incl. VAT ) ≈ £92.03 | ≈ $122.23 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 22194899 |
|---|---|
| Mfg Part No: | TTC-SC21/V4 |
| UPC/EAN: | 4260153572922 |
| Weight: | 1.159 kg |
Product information for Titan TTC-SC21/V4+:
Product features:Universally suitable for all 380–550 mm roof windows from common brands
Very flat design with only 34 mm installation depth – roof window remains fully functional
Manually reversible air flow direction: fresh air supply or exhaust air mode
Powerful airflow up to 280 CFM (476 m³/h) for fast air circulation
Quiet operation thanks to TITAN silent fan (only 7–32 dBA)
6 speed settings selectable via intelligent control panel
Integrated rectifier – no external accessories required
Technical data:Model: SC21/V4+
Dimensions: 320 × 156 × 34 mm
Fan size: 2 × 140 × 140 × 25 mm
Nominal voltage: 12 V DC
Nominal current: 1 A
Power consumption: 12 W
Speed: 600–2200 rpm
Air flow: 76.4–280 CFM
Noise level: 7–32 dBA
Static pressure: 0.05–1.0 inch H2O
Cable length: 6 m
Bearing: Z-axis
Service life: approx. 60,000 hours
Areas of application:Ventilation for motorhome or caravan roof windows
Bathroom or kitchen ventilation in campers
Cabinets and technical compartments
Bus conversions, DIY van life projects, skoolies, tiny houses
| Technical data | |
| Width packaging | 0.200m |
| Operating time (approx.) | 60000h |
| Rated current | 1A |
| Nominal voltage | 12V DC |
| Fan blades | 9 |
| Bearing | Z axis |
| Length packaging | 0.436m |
| Airflow | 130-476m³/h |
| Power connection | Wire +/- |
| Height packaging | 0.053m |
| Fan dimensions (LxW) | 140x140x25mm |
| Rated speed | 600-2200rpm |
| Noise level | 7-32dB(A) |
| Weight | 1.159kg |
| Power consumption | 12W |
| Speedo signal | |
Questions & answers
What is the delivery time of Titan TTC-SC21/V4+ double window fan 2x140mm with remote control, for motorhomes?
The article Titan TTC-SC21/V4+ double window fan 2x140mm with remote control, for motorhomes is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Titan TTC-SC21/V4+ to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Titan TTC-SC21/V4+ double window fan 2x140mm with remote control, for motorhomes always at the best possible price. We can give you a discount of 2% on Titan TTC-SC21/V4+ double window fan 2x140mm with remote control, for motorhomes if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
