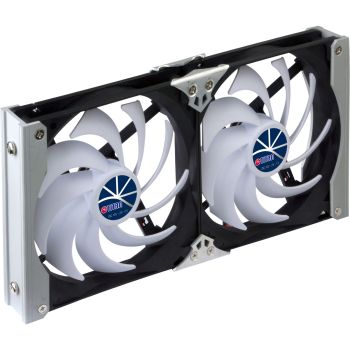

Titan TTC-SC09TZ (A), mobile fan, 2x 92x92x25mm
|
34,67 EUR |
|
|
( 41,26 EUR incl. VAT ) ≈ £29.05 | ≈ $38.59 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 22194721 |
|---|---|
| Mfg Part No: | TTC-SC09TZ(A) |
| UPC/EAN: | 4260120537534 |
| Weight: | 0.608 kg |
Product information for Titan TTC-SC09TZ(A):
This product is not suitable for caravans, as the residual frequencies of the AC current remaining after transformation into DC current may damage the fan electronics.
Please connect the fan only to a 12V DC connector. Please make sure to test the functionality of the double fan and control unit before installation, so that you do not have to remove it again in case of possible complaints.
For motorhomes with constant battery DC supply the fan can be used without any problems.
Durable aluminum rack: no more rusty bits/ install the fan vertically or horizontally by 720° adjustable rack
Aluminum Speed Controller: install the aluminum speed controller’s cover to any place/ automatic temperature control plus manual speed adjustable function
Silent Kukri Fan: high volume, low noise/ industrial Usage-Temperature Measurement Cable/ cable length: 2 meter
Universal Voltage: 12V and 24V input voltage can be applied to ordinary vehicles, large-size vehicles and yachts
Rated Voltage: 12V DC
Rated Current: 0.48A
Power Consumption: 5.76 W
Connector: 3-PIN
Bearing Type: Z-AXIS
Rated Speed: 2600 RPM
Airflow: 106.2 CFM
Noise Level: Life Time: 60,000 hours
Outline Dimension: 226x234x31mm
Note:
This fan does not have an automatic switch-off function, therefore the fan does not switch off completely even in automatic mode at temperatures below 20°C. The fan is not switched off completely when the temperature is below 20°C. To bring the fans to a standstill, the toggle switch must be set manually to "0 cm ( 0 inch ).
Please connect the fan only to a 12V DC connector. Please make sure to test the functionality of the double fan and control unit before installation, so that you do not have to remove it again in case of possible complaints.
For motorhomes with constant battery DC supply the fan can be used without any problems.
Durable aluminum rack: no more rusty bits/ install the fan vertically or horizontally by 720° adjustable rack
Aluminum Speed Controller: install the aluminum speed controller’s cover to any place/ automatic temperature control plus manual speed adjustable function
Silent Kukri Fan: high volume, low noise/ industrial Usage-Temperature Measurement Cable/ cable length: 2 meter
Universal Voltage: 12V and 24V input voltage can be applied to ordinary vehicles, large-size vehicles and yachts
Rated Voltage: 12V DC
Rated Current: 0.48A
Power Consumption: 5.76 W
Connector: 3-PIN
Bearing Type: Z-AXIS
Rated Speed: 2600 RPM
Airflow: 106.2 CFM
Noise Level: Life Time: 60,000 hours
Outline Dimension: 226x234x31mm
Note:
This fan does not have an automatic switch-off function, therefore the fan does not switch off completely even in automatic mode at temperatures below 20°C. The fan is not switched off completely when the temperature is below 20°C. To bring the fans to a standstill, the toggle switch must be set manually to "0 cm ( 0 inch ).
| Technical data | |
| Length packaging | 0.340m |
| Power connection | Wire +/- |
| Width packaging | 0.153m |
| Bearing | Z axis |
| Airflow | 69-180m³/h |
| Rated current | 0.48A |
| Packaging volume | 0.0022m³ |
| Fan blades | Not specified |
| Fan dimensions (LxW) | 92x92x25mm |
| Nominal voltage | 12V DC |
| Rated speed | 1000-2600rpm |
| Height packaging | 0.043m |
| Weight | 0.608kg |
| Operating time (approx.) | 60000h |
| Noise level | 8-25dB(A) |
| Power consumption | 5.76W |
| Speedo signal | |
Questions & answers
What is the delivery time of Titan TTC-SC09TZ (A), mobile fan, 2x 92x92x25mm?
The article Titan TTC-SC09TZ (A), mobile fan, 2x 92x92x25mm is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Titan TTC-SC09TZ(A) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Titan TTC-SC09TZ (A), mobile fan, 2x 92x92x25mm always at the best possible price. We can give you a discount of 2% on Titan TTC-SC09TZ (A), mobile fan, 2x 92x92x25mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
