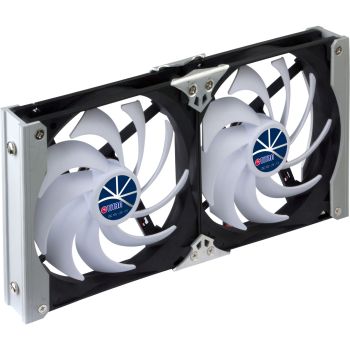

Titan TTC-SC09TZ (C) mobile fan, 2x 140x140x25mm
|
44,25 EUR |
|
|
( 52,66 EUR incl. VAT ) ≈ £37.08 | ≈ $49.25 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 15.01.2027info_outline | |
| Lieske Part No.: | 22194442 |
|---|---|
| Mfg Part No: | TTC-SC09TZ(C) |
| UPC/EAN: | 4260120537558 |
| Weight: | 0.894 kg |
Product information for Titan TTC-SC09TZ(C):
Aluminum Speed Controller: install the aluminum speed controller’s cover to any place/ automatic temperature control plus manual speed adjustable function
Silent Kukri Fan: high volume, low noise/ industrial Usage-Temperature Measurement Cable/ cable length: 2 meter
Universal Voltage: 12V and 24V input voltage can be applied to ordinary vehicles, large-size vehicles and yachts
Rated Voltage: 12V DC
Rated Current: 0.8A
Power Consumption: 9.6 W
Connector: 3-PIN
Bearing Type: Z-AXIS
Rated Speed: 1800 RPM
Airflow: 178.86 CFM
Noise Level: Life Time: 60,000 hours
Outline Dimension: 322x234x31mm
Note:
This fan does not have an automatic switch-off function, therefore the fan does not switch off completely even in automatic mode at temperatures below 20°C. The fan is not switched off completely when the temperature is below 20°C. To bring the fans to a standstill, the toggle switch must be set manually to "0 cm ( 0 inch ).
| Technical data | |
| Noise level | 14-29dB(A) |
| Height packaging | 0.045m |
| Rated speed | 900-1800rpm |
| Rated current | 0.8A |
| Weight | 0.894kg |
| Length packaging | 0.435m |
| Bearing | Z axis |
| Fan dimensions (LxW) | 140x140x25mm |
| Airflow | 152-304m³/h |
| Power consumption | 9.6W |
| Fan blades | Not specified |
| Width packaging | 0.170m |
| Operating time (approx.) | 60000h |
| Nominal voltage | 12V DC |
| Packaging volume | 0.0033m³ |
| Power connection | Wire +/- |
| Speedo signal | |
