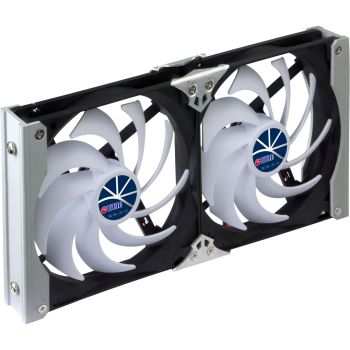

Titan TTC-SC09TZ(B)
mobile fan, 2x 120x120x25mm
|
38,35 EUR |
|
|
( 45,64 EUR incl. VAT ) ≈ £32.14 | ≈ $42.68 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 15.01.2027info_outline | |
| Lieske Part No.: | 22194732 |
|---|---|
| Mfg Part No: | TTC-SC09TZ(B) |
| UPC/EAN: | 4260120537541 |
| Weight: | 0.761 kg |
Product information for Titan TTC-SC09TZ(B):
Please connect the fan only to a 12V DC connector. Please make sure to test the functionality of the double fan and control unit before installation, so that you do not have to remove it again in case of possible complaints.
For motorhomes with constant battery DC supply the fan can be used without any problems.Durable aluminum rack: no more rusty bits/ install the fan vertically or horizontally by 720° adjustable rack
Aluminum Speed Controller: install the aluminum speed controller’s cover to any place/ automatic temperature control plus manual speed adjustable function
Silent Kukri Fan: high volume, low noise/ industrial Usage-Temperature Measurement Cable/ cable length: 2 meter
Universal Voltage: 12V and 24V input voltage can be applied to ordinary vehicles, large-size vehicles and yachts
Rated Voltage: 12V DC
Rated Current: 0.56A
Power Consumption: 6.72 W
Connector: 3-PIN
Bearing Type: Z-AXIS
Rated Speed: 2000 RPM
Airflow: 121.13 CFM
Noise Level: Life Time: 60,000 hours
Outline Dimension: 282x234x31mm
Note:
This fan does not have an automatic switch-off function, therefore the fan does not switch off completely even in automatic mode at temperatures below 20°C. The fan is not switched off completely when the temperature is below 20°C. To bring the fans to a standstill, the toggle switch must be set manually to "0 cm ( 0 inch ).
| Technical data | |
| Fan blades | Not specified |
| Fan dimensions (LxW) | 120x120x25mm |
| Length packaging | 0.395m |
| Rated current | 0.56A |
| Height packaging | 0.045m |
| Weight | 0.761kg |
| Width packaging | 0.150m |
| Power consumption | 6.72W |
| Packaging volume | 0.0027m³ |
| Airflow | 152-304m³/h |
| Power connection | Wire +/- |
| Bearing | Z axis |
| Noise level | 10-33dB(A) |
| Nominal voltage | 12V DC |
| Rated speed | 700-2000rpm |
| Operating time (approx.) | 60000h |
| Speedo signal | |
Questions & answers
What is the delivery time of Titan TTC-SC09TZ(B) mobile fan, 2x 120x120x25mm?
The article Titan TTC-SC09TZ(B) mobile fan, 2x 120x120x25mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Titan TTC-SC09TZ(B) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Titan TTC-SC09TZ(B) mobile fan, 2x 120x120x25mm always at the best possible price. We can give you a discount of 2% on Titan TTC-SC09TZ(B) mobile fan, 2x 120x120x25mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
