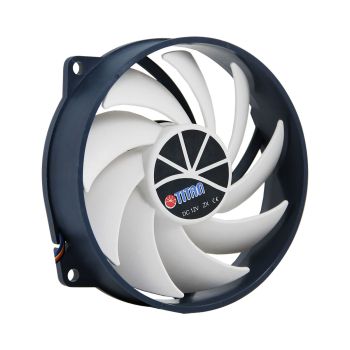

Titan TFD-9525H12ZP/KU(RB)
KUKRI-Series with PWM 95x95x25mm content_copy

With the constant demand of better computing performance, the energy consumption rises to meet users expectations which eventually results into heat increase. To prevent the over-heating problem for your computer, TITAN introduces the newly innovative KUKRI fan, TFD-925 KUKRI series. Its name originates form a symbolic weapon for Gurkha regiments and the Nepali Army which represents the courage of the bearer in the battlefield. The nine curved blades are designed to produce stronger air pressure, speeding up the heat dissipation, and maintain a lower noise level.Nine massive kukri-shaped blades generate outstanding high airflow reaching
9cm ultra-silent fan remains the lower noise level.
The TITAN Z-bearing provides long life-time operation
Easy installation with absorption nails which could reduce noise and vibration
PWM speed controller for full flexibility
Outline Dimension: 95 x 95 x 25 mm
Rated Voltage: 12V DC
Rated Current: 0.24 A
Power Consumption: 2.88W
Rated Speed 900-2600±10% RPM
Airflow: 13.57-39.19 CFM, ca. 23-66m³/h
Noise Level: Bearing Type: Z-AXIS
Life Time: 60,000 Hours

Technical data
Power consumption	2.88W
Length packaging	0.125m
Fan blades	9
Height packaging	0.025m
Rated current	0.24A
Packaging volume	0.0003m³
Bearing	Z axis
Rated speed	900-2600rpm
Noise level	10-27dB(A)
Mounting depth	25mm
Fan dimensions (LxW)	95x95mm
Hole distances	71.5mm
Material	Plastic
Power connection	4 PIN
Airflow	23-66m³/h
Width packaging	0.095m
Weight	0.116kg
Illumination
Temperature controlled
Speedo signal
PWM controlled

---
