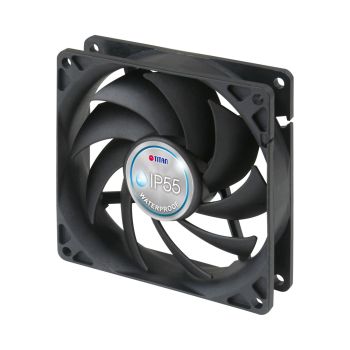

Titan TFD-9225HH12B/KW(BX)
Fan 92x92x25mm IP55 water and dust protected
|
9,88 EUR |
|
|
( 11,76 EUR incl. VAT ) ≈ £8.28 | ≈ $11.00 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 22194524 |
|---|---|
| Mfg Part No: | TFD-9225HH12B/KW(BX) |
| UPC/EAN: | 4260153571017 |
| Weight: | 0.11 kg |
Product information for Titan TFD-9225HH12B/KW(BX):
Suitable for high temperature operation with long life.
Suitable for humid/dusty environments or precise instruments
Specification:Outline Dimension: 92 x 92 x 25 mm
Rated Voltage: 12 V DC
Rated Current: 0.3 A
Power Consumption: 3.24 W
Min. Rated Speed: 3000 ± 10 % RPM
Airflow: 54.8 CFM
Static Pressure: 0.16 InchH2O
Min. Noise Level: Connector: 3-PIN
Bearing Type: TWO BALL
Lifetime: 50,000 Hours
| Technical data | |
| Cable length | 0.4m |
| Power consumption | 3.24W |
| Noise level | 34dB(A) |
| Power connection | 3 PIN |
| Rated current | 0.3A |
| Mounting depth | 25mm |
| Width packaging | 0.100m |
| Material | Plastic |
| Hole distances | 82.5mm |
| Airflow | 93.1m³/h |
| Fan dimensions (LxW) | 92x92mm |
| Rated speed | 3000rpm |
| Packaging volume | 0.0004m³ |
| Height packaging | 0.030m |
| Weight | 0.110kg |
| Fan blades | 9 |
| Length packaging | 0.120m |
| Bearing | Two ball |
| Temperature controlled | |
| Speedo signal | |
| PWM controlled | |
| Illumination | |
Questions & answers
What is the delivery time of Titan TFD-9225HH12B/KW(BX) Fan 92x92x25mm IP55 water and dust protected?
The article Titan TFD-9225HH12B/KW(BX) Fan 92x92x25mm IP55 water and dust protected is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Titan TFD-9225HH12B/KW(BX) to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Titan TFD-9225HH12B/KW(BX) Fan 92x92x25mm IP55 water and dust protected always at the best possible price. We can give you a discount of 2% on Titan TFD-9225HH12B/KW(BX) Fan 92x92x25mm IP55 water and dust protected if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
