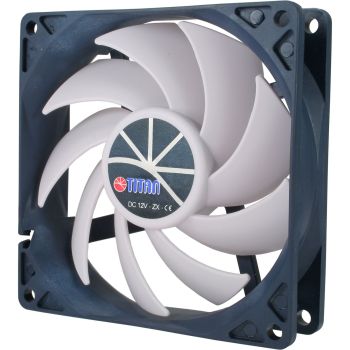

Titan TFD-9225H12ZP/KU(RB)
KUKRI-Series with PWM 92x92x25mm content_copy

With the constant demand of better computing performance, the energy consumption rises to meet users expectations which eventually results into heat increase. To prevent the over-heating problem for your computer, TITAN introduces the newly innovative KUKRI fan, TFD-925 KUKRI series. Its name originates form a symbolic weapon for Gurkha regiments and the Nepali Army which represents the courage of the bearer in the battlefield. The nine curved blades are designed to produce stronger air pressure, speeding up the heat dissipation, and maintain a lower noise level.Nine massive kukri-shaped blades generate outstanding high airflow reaching
9cm ultra-silent fan remains the lower noise level.
The TITAN Z-bearing provides long life-time operation
Easy installation with absorption nails which could reduce noise and vibration
PWM speed controller for full flexibility
Outline Dimension: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Rated Current: 0.24 A
Power Consumption: 2.88W
Rated Speed 900-2600±10% RPM
Airflow: 13.57-53.1 CFM, ca. 23-90m³/h
Noise Level: Bearing Type: Z-AXIS
Life Time: 60,000 Hours

Technical data
Airflow	23-66m³/h
Length packaging	0.125m
Fan blades	9
Noise level	10-25dB(A)
Fan dimensions (LxW)	92x92mm
Width packaging	0.100m
Weight	0.123kg
Power connection	4 PIN
Mounting depth	25mm
Rated speed	900-2600rpm
Rated current	0.24A
Material	Plastic
Power consumption	2.88W
Packaging volume	0.0003m³
Bearing	Z axis
Hole distances	82.5mm
Height packaging	0.025m
Speedo signal
Illumination
PWM controlled
Temperature controlled

---
