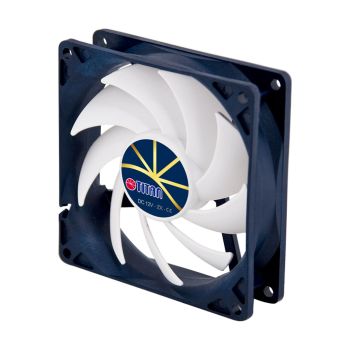

Titan TFD-9225H12ZP/KE(RB)
Extreme Silent Fan with PWM 92x92x25mm
|
10,94 EUR |
|
|
( 13,02 EUR incl. VAT ) ≈ £9.17 | ≈ $12.18 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 22194561 |
|---|---|
| Mfg Part No: | TFD-9225H12ZP/KE(RB) |
| UPC/EAN: | 4260153570096 |
| Weight: | 0.123 kg |
Product information for Titan TFD-9225H12ZP/KE(RB):
The noise level at this low speed of only 5dBA is almost imperceptible, which enables use in almost any environment.
If necessary, the fan speed can be increased to approx. 10 times the minimum speed to prevent any heat build-up in the case.
The fan is controlled via the 4-pin mainboard connection using a PWM signal.
In addition, the Extreme Fan Series offers the best durability thanks to the exclusive Z-axis bearing from TITAN, which has a longer service life of up to 60,000 hours3 advantages - extreme silent, extreme minimum speed, extreme low power consumption
Silent operation with minimum 270RPM
Precise speed control reduces power consumption
Specification:Outline Dimension: 92x92x25mm
Rated Voltage: 12V DC
Rated Current: 0.24A
Power Consumption: 2.88W
Min. Rated Speed: 270 ± 20% ~ 2700 ± 10% RPM
Airflow: 47.56 CFM
Static Pressure: 0.11 InchH2O
Min. Noise Level: Connector: 4-PIN PWM function
Bearing Type: Z-AXIS
Life Time: 60,000 hours
| Technical data | |
| Hole distances | 82.5mm |
| Airflow | 81m³/h |
| Packaging volume | 0.0004m³ |
| Fan blades | 9 |
| Rated speed | 270-2700rpm |
| Mounting depth | 25mm |
| Length packaging | 0.122m |
| Weight | 0.123kg |
| Power consumption | 2.88W |
| Bearing | Z axis |
| Noise level | 5-23dB(A) |
| Fan dimensions (LxW) | 92x92mm |
| Power connection | 4 PIN |
| Width packaging | 0.100m |
| Material | Plastic, silicone |
| Rated current | 0.24A |
| Height packaging | 0.028m |
| PWM controlled | |
| Temperature controlled | |
| Illumination | |
| Speedo signal | |
