Theben 5400230 DIMAX 540 APP B UP-dimmer, no neutral conductor required, App

Your rating:
Average rating
product review for Theben 5400230 DIMAX 540 APP B UP-dimmer, no neutral conductor required, App
( 4.3 / 5 ) 4 ratings

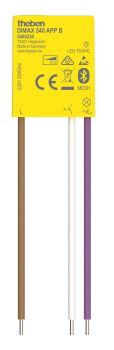

Theben 5400230
This image may differ from the desired article.
67,13 EUR 69,95 EUR
( 79,88 EUR incl. VAT )
≈ £56.19  |  ≈ $73.78
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Theben 5400230 DIMAX 540 APP B UP-dimmer, no neutral conductor required, App
Lieske Part No.:157230
Mfg Part No: 5400230
UPC/EAN: 4003468540077
Weight:0.123 kg
Type:DIMAX 540 APP B
Graduated prices net
From piecesPrice per pieces
665,12 EUR
1263,10 EUR
2461,09 EUR
3659,07 EUR

Product information for Theben 5400230:

The Theben DIMAX 540 APP B is an UP dimmer for R- and C-loads, specifically developed for controlling LED, incandescent, and halogen lamps. The device enables remote control via an app and is networkable via Bluetooth Mesh, allowing integration into intelligent building and lighting systems. The compact design makes it particularly suitable for retrofitting into existing installations without requiring additional space. The electronics are fully encapsulated, ensuring high mechanical and electrical stability as well as protection against environmental influences.

Applications

The DIMAX 540 APP B is designed for use in residential and commercial buildings where flexible and intelligent lighting control is required. It is particularly suitable for switching circuits with greater distances and multiple switches, as it operates reliably even with cable lengths up to 100 meters. The application is independent of the number of switches and spatial distribution, as long as the electrical connection is ensured. Functions such as minimum brightness and memory function support user-friendly operation and allow the last set brightness level to be restored.

Functions and Equipment in Detail

The device features an extended dimming speed of 5 seconds, which facilitates precise selection of the desired dimming level. The integrated temperature shutdown, overcurrent protection, and short-circuit protection safeguard the device and connected lighting against damage caused by overload or incorrect operation. The memory function stores the last dimming state, so that upon reactivation, the previous brightness level is restored. The minimum brightness function ensures that the lighting cannot be dimmed below a specific, pre-set level, which is important for safety and functionality in certain rooms.

Technology Explained Simply

The DIMAX 540 APP B operates as an UP dimmer, meaning it increases the voltage at the load connection to control the light sources. It is designed for R- (resistive) and C- (capacitive) loads, making it suitable for a wide range of lighting types. Control is performed via an app connected via Bluetooth, enabling remote operation. Networking via Bluetooth Mesh allows communication with other devices in the network, enabling coordinated control of multiple dimmers. The electronics are fully encapsulated, providing high mechanical strength and protection against moisture and dust. The operating voltage is supplied via the network cable, eliminating the need for a neutral conductor, which simplifies installation.

Compatibility and Accessories

The device is compatible with an LED compensation module (article number 9070825), which can be used to optimize the dimming characteristics for LED loads. Combining the device with the compensation module enables more precise and smooth dimming, especially for LED systems that may otherwise exhibit irregular behavior or be non-dimmable at low power levels.

Mounting and Installation

Installation is carried out in a modular installation device, with the small form factor enabling easy mounting in standard installation ducts. Since no neutral conductor is required, the device can also be installed in existing installations without rerouting the neutral conductor. Cable length can reach up to 100 meters, increasing flexibility in positioning switches and lighting. The electrical connection is made via the network cable, which simultaneously provides power supply and data transmission.

Advantages in Operation

Operation of the DIMAX 540 APP B is safe and reliable due to the integrated protection functions. Remote control via app and networking via Bluetooth Mesh enable flexible and centralized lighting control. The memory function and minimum brightness ensure user-friendly operation, while the extended dimming speed allows precise adjustment of the brightness level. The compact design and the ability to operate without a neutral conductor reduce installation costs and effort, especially for retrofits.

Batteries are not included in the delivery scope.

General
Type of deviceUP dimmer
Load typeR- and C-loads
CompatibilityLED, incandescent and halogen lamps
ControlApp, Bluetooth Mesh
ElectronicsFully encapsulated
Cable lengthup to 100 m
Dimming speed5 s
Protection functionstemperature shutdown, overload shutdown, short-circuit protection
FunctionsMemory function, minimum brightness
AccessoriesLED compensation module
