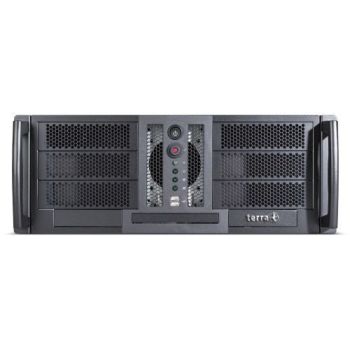

TERRA PC-INDUSTRY 6000 BTO
|
1.941,39 EUR |
|
|
( 2.310,25 EUR incl. VAT ) ≈ £1,626.88 | ≈ $2,172.42 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 812557 |
| Mfg Part No: | 1000989 |
| UPC/EAN: | 4039407079308 |
| Weight: | 16 kg |
Product information for Terra 1000989:
-->> Is only being built via BTO process !
| Audio | |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Rack-mounted chassis |
| Placement supported | Horizontal |
| Number of 5.25" bays | 6 |
| Product colour | Black |
| Display | |
| Display included | |
| Expansion slots | |
| Number of 3.5" bays | 6 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Expansion slots | 1x PCIe x16 Gen5, 1x PCIe x16 @ x4 Gen4, 1x PCIe x8 @ x4 Gen4 "open slot", 1x PCIe x8 @ x4 Gen3, 2x PCIe x1 Gen3, 1x PCI 32Bit (via PCI to PCIe Bridge) |
| Features | |
| Motherboard manufacturer | Kontron K3851-R ¦ 24-7 ready ¦ Made in Germany |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Resolution description | Display Port 1.2 bis 4096x2160 @ 60Hz |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Network | |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel® I219-LM, Intel I225-LM |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
| Other features | |
| Locale | International repository |
| Packaging content | |
| Cables included | AC |
| Mouse included | |
| Manual | |
| Performance | |
| Market positioning | Industry |
| Product type | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 6.0 channels |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 3 |
| Line-out | |
| Line-in | |
| Microphone in | |
| Power | |
| Power supply | 400 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Bronze |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 20 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 10, Windows 11 |
| Storage | |
| Total storage capacity | 480 GB |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| Number of storage drives supported | 7 |
| Total SSDs capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD form factor | 2.5" |
| Storage options | 4x Serial-ATA III 600 (up to 6GBit/s), NCQ, AHCI, RAID 0/1/5/10¦ • 2x M.2 2280 (Key-M) for PCIe/NVMe SSD modules incl. NVMe RAID 0/1 Support |
| RAID levels | 5, 1, 0, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 445 mm |
| Height | 176 mm |
| Weight | 15.5 kg |
Questions & answers
What is the delivery time of TERRA PC-INDUSTRY 6000 BTO?
The article TERRA PC-INDUSTRY 6000 BTO is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Terra 1000989 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TERRA PC-INDUSTRY 6000 BTO always at the best possible price. We can give you a discount of 2% on TERRA PC-INDUSTRY 6000 BTO if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
