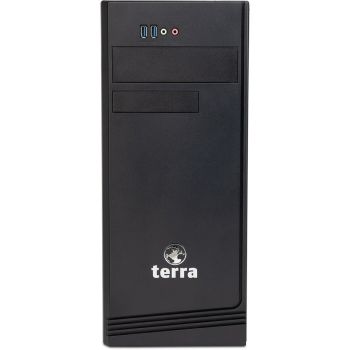

TERRA PC BUSINESS 6000
|
962,08 EUR |
|
|
( 1.144,88 EUR incl. VAT ) ≈ £806.22 | ≈ $1,076.57 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 812308 |
| Mfg Part No: | 1000168 |
| UPC/EAN: | 4039407089604 |
| Weight: | 12 kg |
Product information for Terra 1000168:
General
Processor model: Intel Core i5 (14. Gen.) 14500 / 24 MB Intel Smart Cache, max. Turbo-Frequency 5.0 GHz)
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i5
Processor cores: 14-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Storage
Total storage capacity: 500 GB
HDD interface: 6x SATA 6Gb/s ports
2x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
1x M.2 Socket E 2230 CNVI für WLAN + Bluetooth
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10
SSD interface: PCIe (NVMe)
SSD capacity: 500 GB
HDD capacity: 1 x 500 GB - SSD
Performance
Series: Business
Noise level: 28.4 dB
Audio output channels: 7.1 Channel Surround
Motherboard chipset: Intel Q670
Design
Chassis type: Mid tower
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Expansion slots
Expansion slots: 1x PCIe 4.0/3.0 x16 slot
2x PCIe 3.0 x1 slots
Weight & dimensions
Height: 43.5 cm
Width: 18 cm
Depth: 42 cm
Weight: 8 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" )
1 front - 8.9 cm ( 3.5" )
2 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 4x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 fron, 2x USB 2.0 Type-A
2x DisplayPort 1.4, 1x HDM 2.1, 1x RJ45, 3x Audio jacks, 2x PS/2
Option: 2x COM, 1x LPT
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Asus PRIME Q670M-C CSM
Business Series
24/7 ready
Special features: Unterstützt Intel vPro-Technology mit geeigneten CPUs
Imagestabilität des Mainboards bis ca. Q3/2023
M.2 2230E CNVI Slot
TPM 2.0 Chip
Secure Boot
2x USB 3.2 Gen1 Typ A + Audio in Front
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: HDMI 4K @60Hz
DP 4K @60Hz
Graphics card: Intel UHD Graphics 770
On-board graphics card model: Intel UHD Graphics 770
On-board graphics card: integrated
Graphics adapter ports: 1x HDMI, 2x DP (Display Port)
Supports Triple-Monitoring
Power
Power source: Flex ATX Netzteil 80 Plus Bronze, 24-7 Dauerbetrieb geeignet
POWER EFFICIENCY At 20%/ 50%/ 100% load : 82%/ 85%/ 82%.
Maximum input power: 400 W
Nominal power: 19 Watt in Idle Mode
AC adapter input voltage: 100-240 V~ / 50-60 Hz
Operational conditions
Intervalo de temperatura operativa: 0 °C - 35 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
LAN controller: Intel I219LM, WOL/ PXE
iAMT 11 (vPro 2015)
Data link protocols: Ethernet
Fast Ethernet
Gigabit Ethernet
Optical drive
Optical drive type: w/o ODD
Input device
Movement detection technology: Optical
Device interface: USB
Notes
Additional Information: *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device.
Processor model: Intel Core i5 (14. Gen.) 14500 / 24 MB Intel Smart Cache, max. Turbo-Frequency 5.0 GHz)
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Core i5
Processor cores: 14-Core
Processor socket: FCLGA1700 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 1 x 16 GB
Maximum internal memory: 128 GB
Memory clock speed: PC5600 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Storage
Total storage capacity: 500 GB
HDD interface: 6x SATA 6Gb/s ports
2x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
1x M.2 Socket E 2230 CNVI für WLAN + Bluetooth
RAID levels: RAID 0
RAID 1
RAID 5
RAID 10
SSD interface: PCIe (NVMe)
SSD capacity: 500 GB
HDD capacity: 1 x 500 GB - SSD
Performance
Series: Business
Noise level: 28.4 dB
Audio output channels: 7.1 Channel Surround
Motherboard chipset: Intel Q670
Design
Chassis type: Mid tower
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Quick Start Guide, Powercord EU
Expansion slots
Expansion slots: 1x PCIe 4.0/3.0 x16 slot
2x PCIe 3.0 x1 slots
Weight & dimensions
Height: 43.5 cm
Width: 18 cm
Depth: 42 cm
Weight: 8 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 5.25" )
1 front - 8.9 cm ( 3.5" )
2 internal - 8.9 cm ( 3.5"/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: 4x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1 fron, 2x USB 2.0 Type-A
2x DisplayPort 1.4, 1x HDM 2.1, 1x RJ45, 3x Audio jacks, 2x PS/2
Option: 2x COM, 1x LPT
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: Asus PRIME Q670M-C CSM
Business Series
24/7 ready
Special features: Unterstützt Intel vPro-Technology mit geeigneten CPUs
Imagestabilität des Mainboards bis ca. Q3/2023
M.2 2230E CNVI Slot
TPM 2.0 Chip
Secure Boot
2x USB 3.2 Gen1 Typ A + Audio in Front
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: HDMI 4K @60Hz
DP 4K @60Hz
Graphics card: Intel UHD Graphics 770
On-board graphics card model: Intel UHD Graphics 770
On-board graphics card: integrated
Graphics adapter ports: 1x HDMI, 2x DP (Display Port)
Supports Triple-Monitoring
Power
Power source: Flex ATX Netzteil 80 Plus Bronze, 24-7 Dauerbetrieb geeignet
POWER EFFICIENCY At 20%/ 50%/ 100% load : 82%/ 85%/ 82%.
Maximum input power: 400 W
Nominal power: 19 Watt in Idle Mode
AC adapter input voltage: 100-240 V~ / 50-60 Hz
Operational conditions
Intervalo de temperatura operativa: 0 °C - 35 °C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
LAN controller: Intel I219LM, WOL/ PXE
iAMT 11 (vPro 2015)
Data link protocols: Ethernet
Fast Ethernet
Gigabit Ethernet
Optical drive
Optical drive type: w/o ODD
Input device
Movement detection technology: Optical
Device interface: USB
Notes
Additional Information: *The upgrade rollout plan is still being finalized but is scheduled to begin late in 2021 and continue into 2022. Specific timing will vary by device.
| Audio | |
| Audio system | High Definition Audio |
| Design | |
| Chassis type | Midi Tower |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | |
| Display | |
| Display included | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Expansion slots | 1x PCIe 4.0/3.0 x16 slot ¦ 2x PCIe 3.0 x1 slots |
| Features | |
| Motherboard manufacturer | Asus PRIME Q670M-C CSM ¦ Business Series ¦ Designed für den 24/7 Betrieb |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Number of external displays supported | 3 |
| Resolution description | HDMI 4K @60Hz ¦ DP 4K @60Hz |
| Graphics card HDMI ports quantity | 1 |
| Graphics card DisplayPorts quantity | 2 |
| Discrete graphics card | |
| On-board graphics card | |
| Keyboard | |
| Keyboard connectivity | Wired |
| Keyboard language | German |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 5600 MHz |
| Network | |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| LAN controller | Intel® I219-LM |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 75% |
| Other features | |
| Locale | German |
| Packaging content | |
| Mouse connectivity | Wired |
| Cables included | AC |
| Mouse included | |
| Keyboard included | |
| Manual | |
| Performance | |
| Market positioning | Business |
| Motherboard chipset | Intel Q670 |
| Product type | PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
| Sound pressure level | 23.8 dB |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Number of rear USB ports | 6 |
| Number of front USB ports | 2 |
| Number of front audio ports | 2 |
| Number of rear audio ports | 1 |
| Power | |
| Power supply | 400 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 0.25 W |
| Power consumption (long idle) | 19 W |
| 80 PLUS certification | 80 PLUS Bronze |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.6 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Software | |
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 10, Windows 11 |
| Storage | |
| Total storage capacity | 500 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Storage options | 6x SATA 6Gb/s ports ¦ 2x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)¦ 1x M.2 Socket E 2230 CNVI für WLAN + Bluetooth |
| RAID levels | 5, 1, 0, 10 |
| Optical drive type | |
| NVMe | |
| RAID support | |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 420 mm |
| Height | 435 mm |
| Weight | 8 kg |
Questions & answers
What is the delivery time of TERRA PC BUSINESS 6000?
The article TERRA PC BUSINESS 6000 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Terra 1000168 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TERRA PC BUSINESS 6000 always at the best possible price. We can give you a discount of 2% on TERRA PC BUSINESS 6000 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
