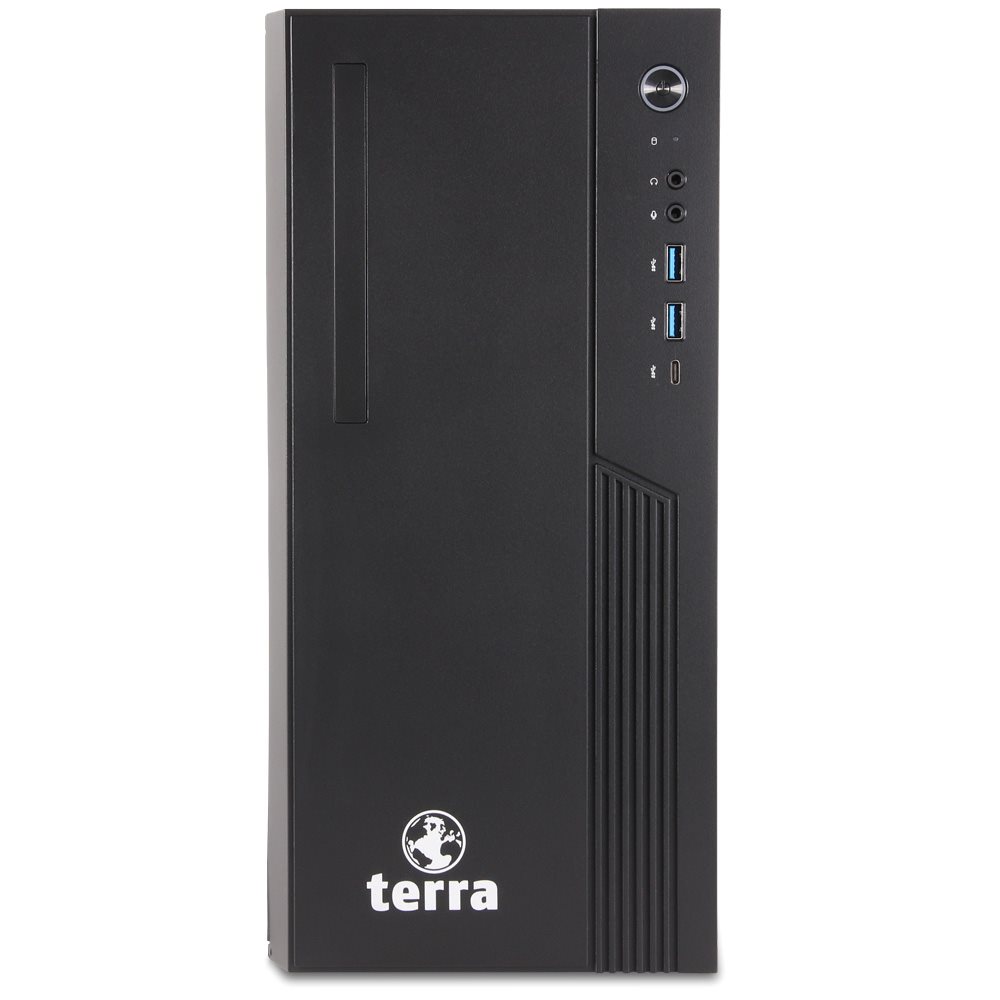

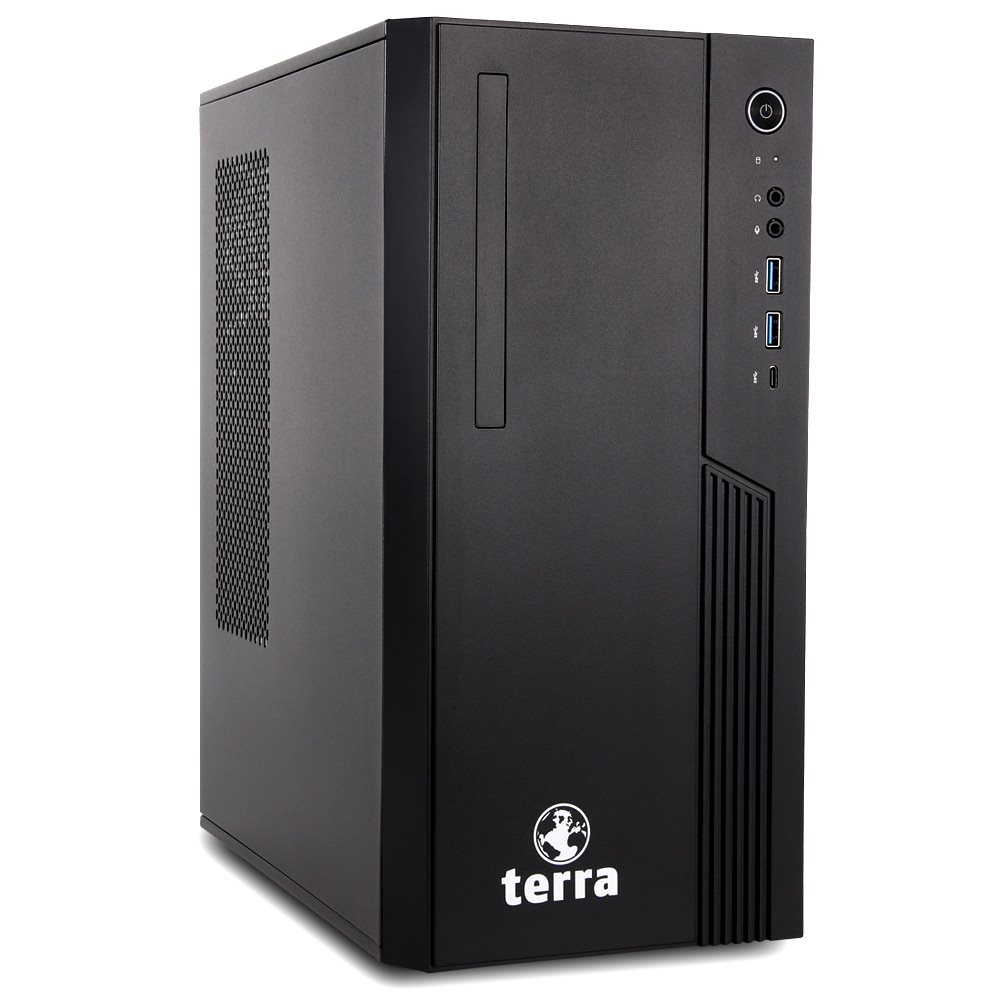

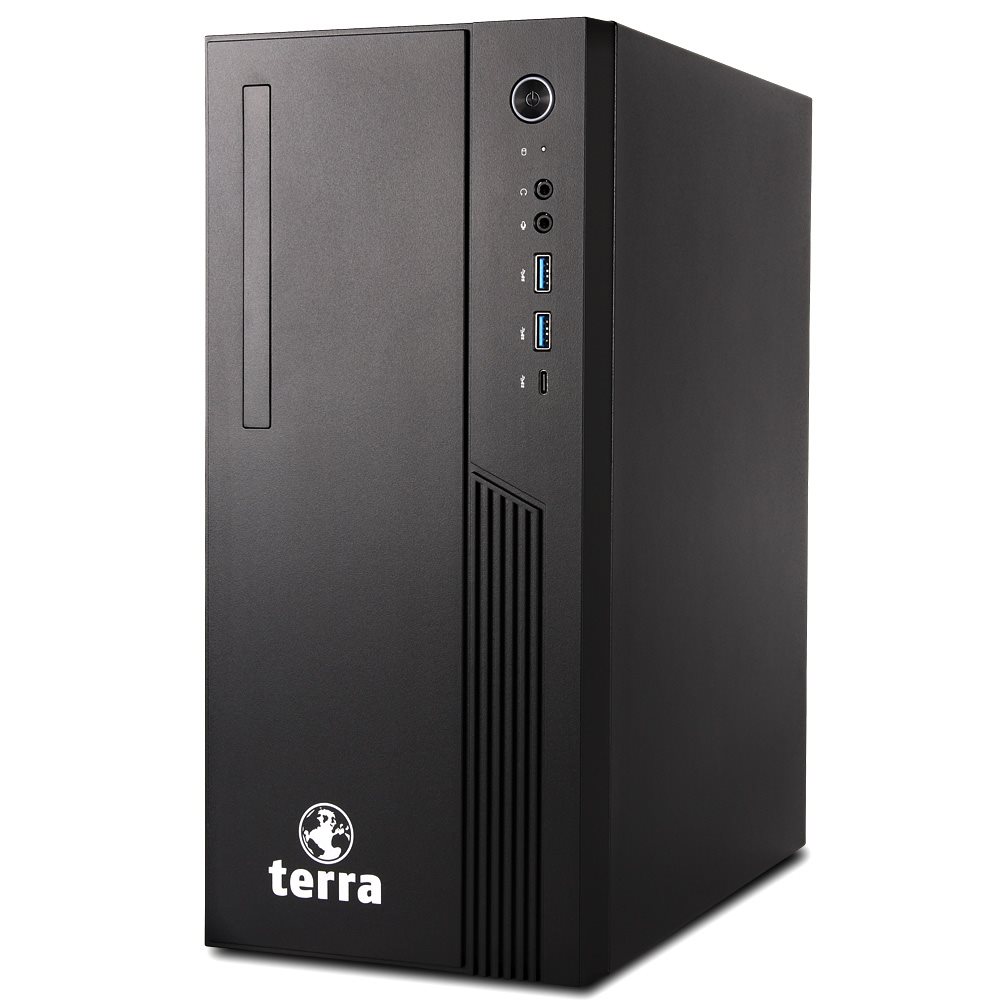

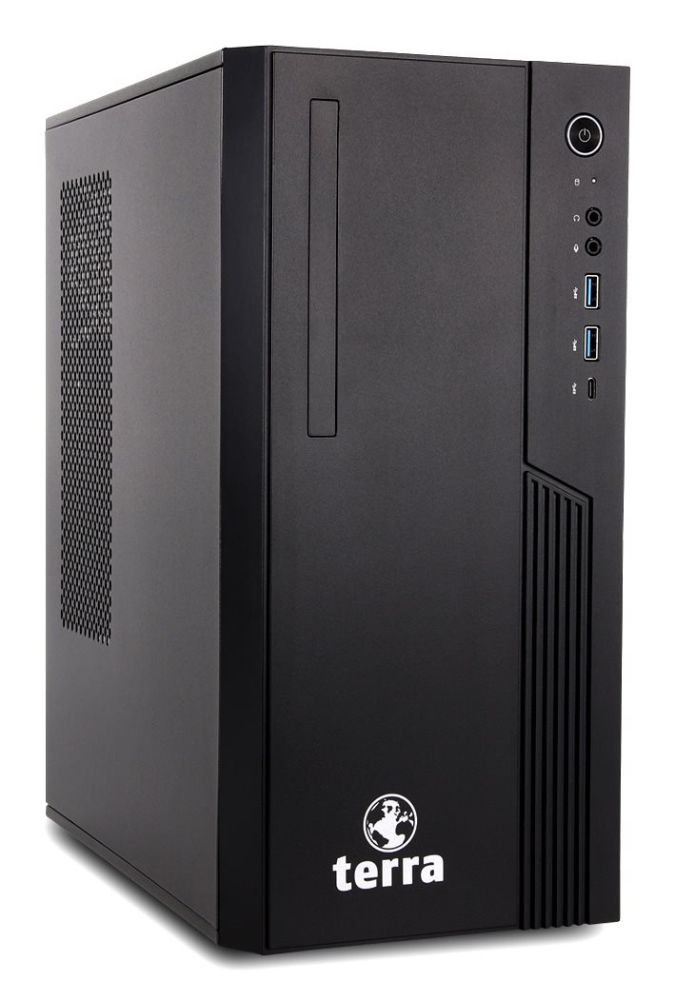

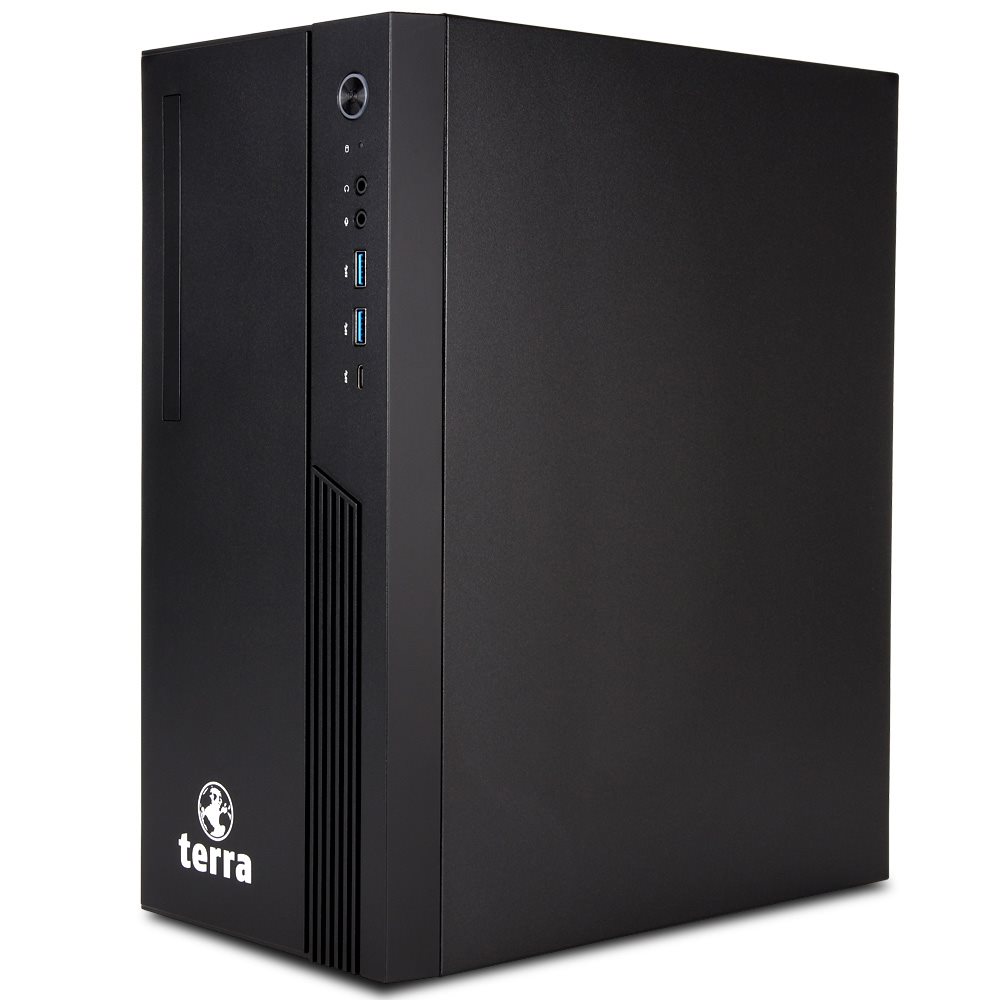

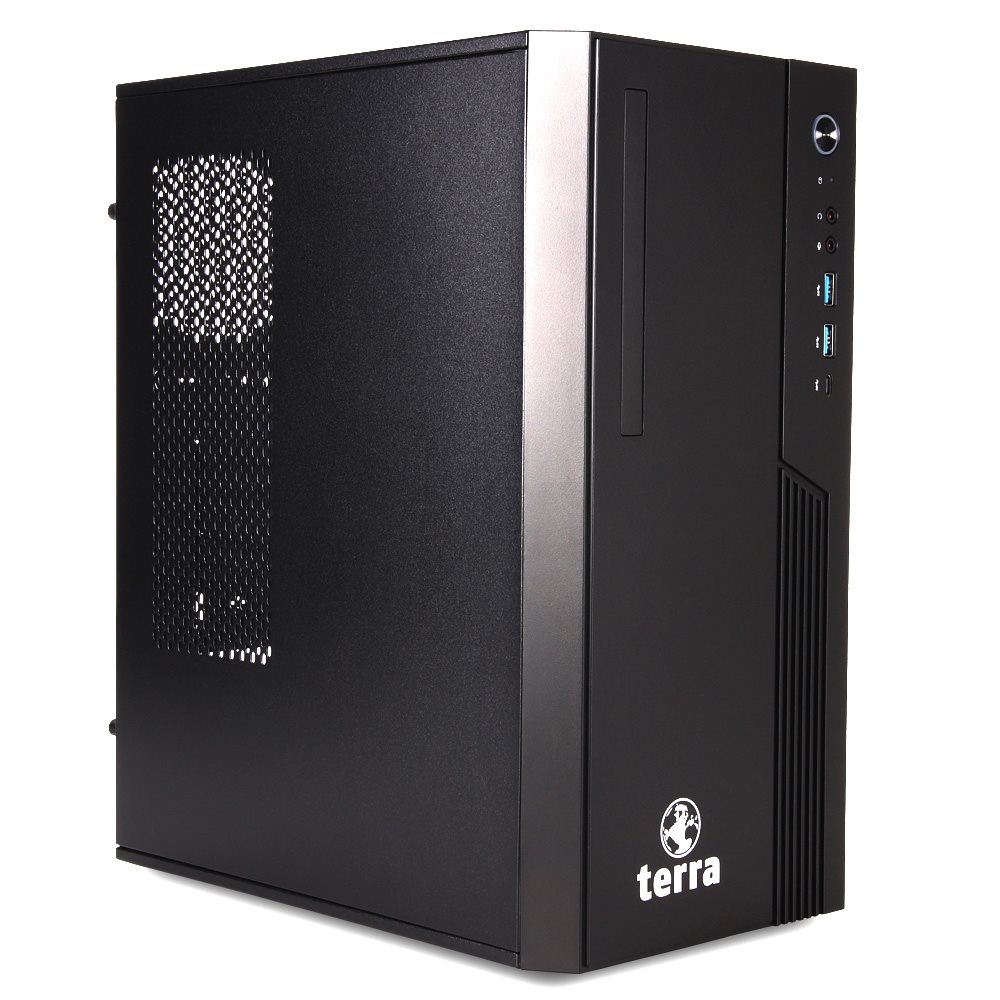

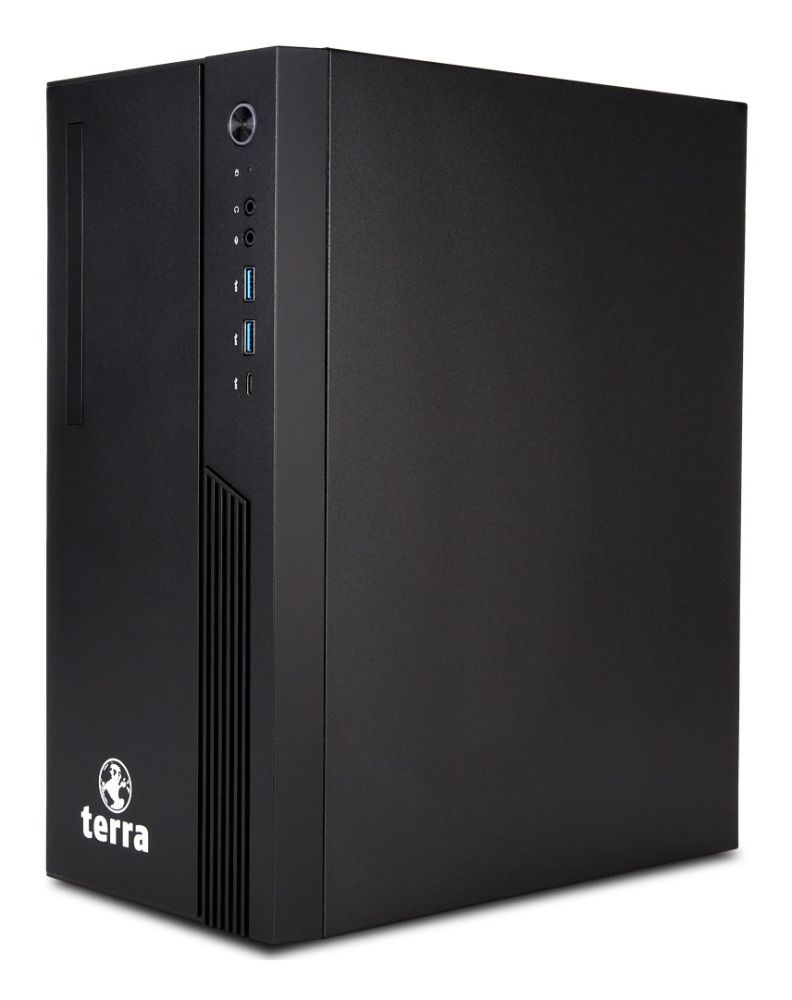

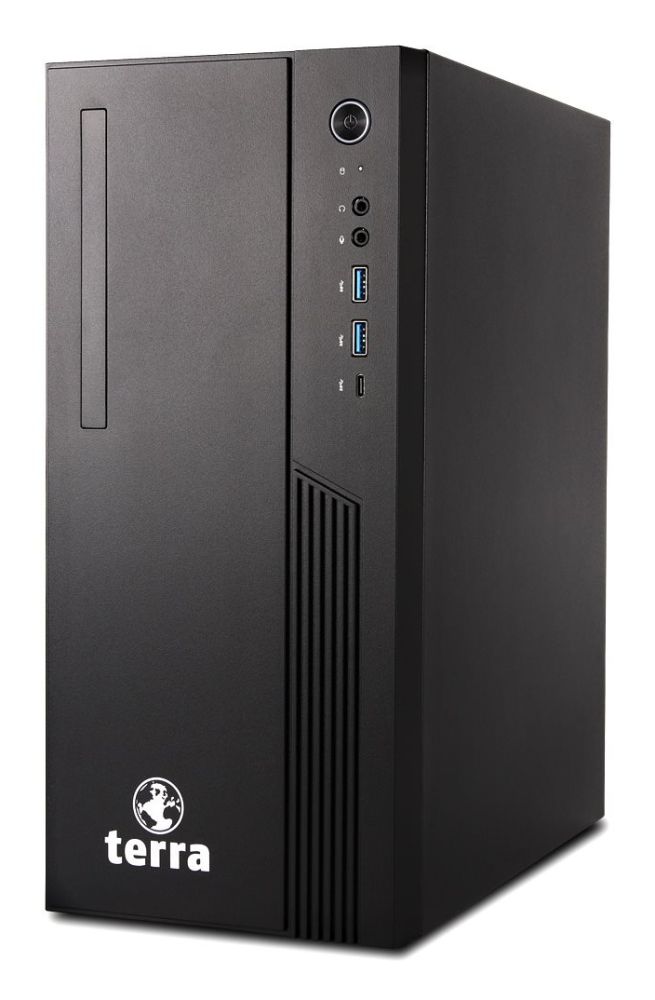

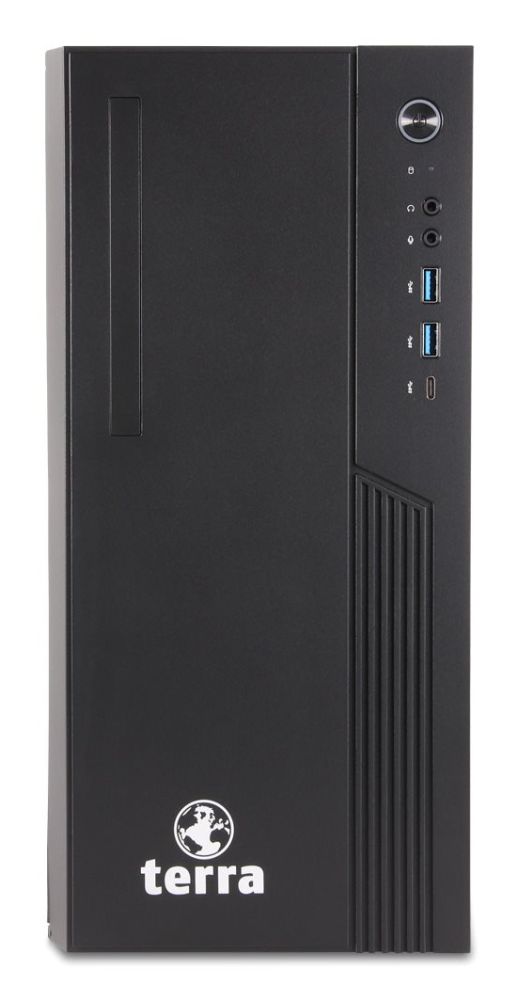

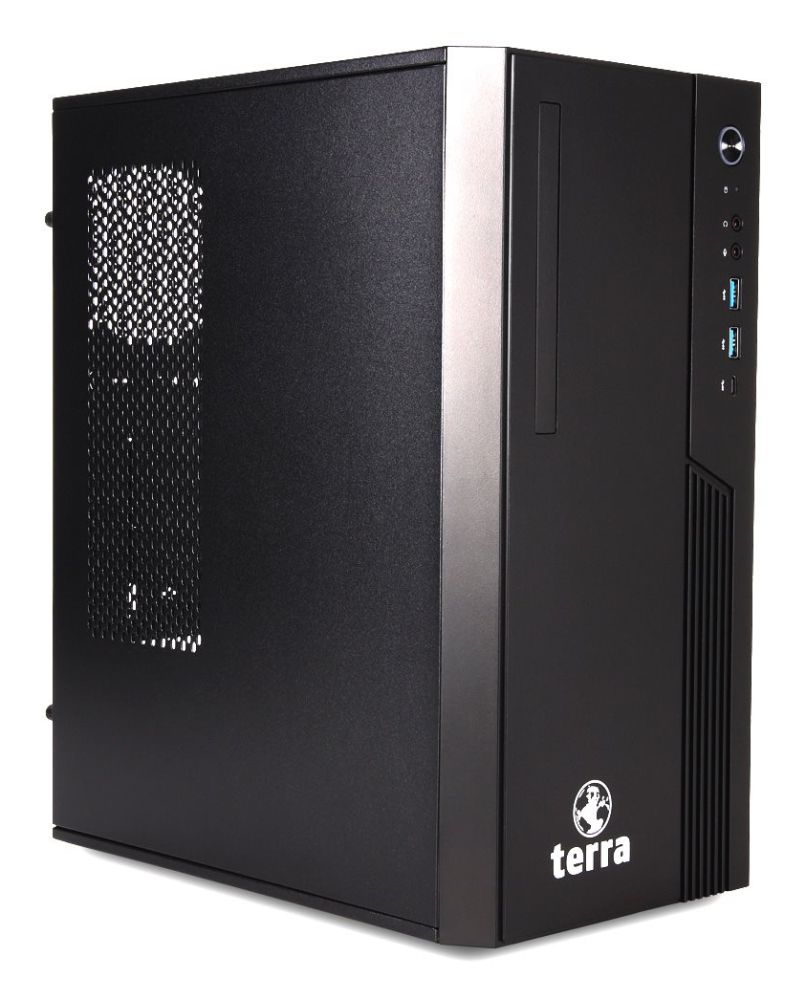

TERRA PC BUSINESS 6000 content_copy

General
Processor model: CPU Intel Core Ultra 5 225
Operating system: Windows 11 Pro
Software
Pre-installed software: 1 month trial version for new Microsoft® 365 user
Processor
Processor family: Intel® Core™ Ultra 5 Processor
Processor cores: Deka-Core (10 Cores)
Processor socket: FCLGA1851 Socket
Number of processors: 1
Memory
Internal memory: 16 GB
Memory layout (slots x size): 2 x 8 GB
Maximum internal memory: 256 GB
Memory clock speed: PC4800 MHz
Internal memory type: DDR5 SDRAM
Memory slots: 4 pc(s)
Memory form factor: DIMM, 288-PIN
Storage
Total storage capacity: 500 GB
HDD interface: 2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode, 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels: RAID 0, 1, 5, 10 (No M.2 NVMe RAID support)
SSD interface: PCIe (NVMe)
SSD capacity: 500 GB
HDD capacity: 1 x 500 GB - SSD
Number of storage drives supported: 2x M.2 PCIe 5.0, 4x SATA 6 Gb/s
Storage media: SSD - M.2
Performance
Series: Business
Noise level: 22,7 dB (Idle-Mode)
Audio output channels: 8-channel
Motherboard chipset: Intel B860
Design
Chassis type: Micro tower
Keyboard form factor: TERRA Keyboard German Layout
Keyboard
Connectivity technology: Wired
Device interface: USB
Technical details
Localization: German
Packaging content
Included Accessories: Quick Install Guide, Multi-country AC adapter (IEC plug types A, C, G & I), VESA mounting Kit
Expansion slots
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Weight & dimensions
Altura: 35.3 cm
Ancho: 16.8 cm
Profundidad: 30.5 cm
Peso: 5.2 kg
Other features
Number of drive bays: 1 front - 13.3 cm ( 13,3 cm ( 5,2 inch ) Ultra Slim )
1 internal - 8.9 cm ( 8,9 cm ( 3,5 inch )/ 6,3 cm ( 2,5 inch ) with adapter)
1 internal 6.4 cm (for 6,3 cm ( 2,5 inch ) SSD)
Interface: Front: 2x USB A, 1x USB C, 2x Audio, Rear: 1x USB C, 1x USB A 3.2, 2x USB 2.0, 2x DP, 1x HDMI, 2x PS/2, 1x RJ-45, 3x Audio
Compatible operating systems: Windows 10, Windows 11
Motherboard manufacturer: ASUS Pro B860M-C-CSM 24/7 ready
Cooling type: Active
Special features: TPM 2.0
Secure Boot
Windows Autopilot-ready
1x USB-C + 2x USB 3.2 Gen1 Typ A + Audio in Front
Mouse
Mouse included: Terra Mouse Corded
Graphics
On-board graphics adapter memory: Dynamisch GB
On-board graphics adapter maximum resolution: Max. 7680 x 4320
Graphics card: Intel HD Graphics
On-board graphics card model: Intel Graphics
On-board graphics card: integrated
Graphics adapter ports: 2x DP, 1x HDMI
Power
Power source: ATX power supply. Meets 80-plus Bronce
Eligible for regular business use max. 60h/ week
Energy efficiency (Workload 10 %/ 20 %/ 50 % / 100 %): 82 %/ 82 % / 85 % / 82 %
Power consumption (standby): Ø 1.8 Watt (S3 Mode, Suspend to RAM, WOL activated)
0,25 Watt Soft off (S5 Mode)
Maximum input power: 350 W
AC adapter input voltage: AC 230V ( 50 Hz )
Operational conditions
Operating temperature (T-T): 0° - 35° C
Recommended humidity operating range: 10 - 75% (non-condensing)
Network
Ethernet LAN: Netzwerkadapter - integriert
LAN controller: Intel I219V, WOL/PXE
Optical drive
Optical drive type: Ohne optisches Laufwerk
Input device
Movement detection technology: Optical
Device interface: USB

Audio
Audio system	High Definition Audio
Certificates
Compliance certificates	CE
Design
Chassis type	Micro Tower
Product colour	Black
Cooling type	Active
Display
Display included
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Expansion slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (supports x4), 1x PCIe 4.0 x1
Features
Motherboard manufacturer	ASUS Pro B860M-C-CSM 24/7 ready
Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Number of external displays supported	3
Resolution description	Max. 7680 x 4320
Discrete graphics card
On-board graphics card
On-board graphics card 6K support
On-board graphics card 8K support
Keyboard
Keyboard connectivity	Wired
Keyboard language	German
Memory
Internal memory	16 GB
Maximum internal memory	256 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	4800 MHz
Network
Ethernet LAN data rates	100,1000 Mbit/s
LAN controller	Intel I219V
Ethernet LAN
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
NPU performance up to	13 TOPs
Sparsity support
Windows Studio effects support
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 75%
Other features
Locale	German
Packaging content
Cables included	AC
Mouse included
Keyboard included
Manual
Performance
Market positioning	Business
Motherboard chipset	Intel B860
Product type	PC
Trusted Platform Module (TPM) version	2.0
Audio output channels	8.0 channels
Sound pressure level	22.7 dB
Trusted Platform Module (TPM)
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
DisplayPorts quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
Number of rear USB ports	4
Number of front USB ports	3
Number of front audio ports	1
Number of rear audio ports	3
Total number of SATA connectors	4
Line-out
Microphone in
Power
Power supply	350 W
Power supply input voltage	230 V
Power supply input frequency	50 Hz
Power consumption (typical)	24 W
Power consumption (standby)	1.7 W
Power consumption (off)	0.33 W
Power consumption (short idle)	24 W
80 PLUS certification	80 PLUS Bronze
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel Core Ultra (Series 2)
Processor model	225
Processor cores	10
Processor threads	10
Processor boost frequency	4.9 GHz
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	3.3 GHz
Efficient-core base frequency	2.7 GHz
Processor cache	20 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor socket	LGA 1851 (Socket V1)
Processor base power	65 W
Maximum turbo power	121 W
Software
Operating system installed	Windows 11 Pro
Compatible operating systems	Windows 10, Windows 11
Storage
Total storage capacity	500 GB
Storage media	SSD
Number of storage drives supported	6
Total SSDs capacity	500 GB
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	PCI Express
SSD form factor	M.2
Storage options	2x M.2 (Key M) 2280/2260/2242 PCIe 5.0 x4 mode, 4x SATA 6Gb/s ports, supports SATA Raid 0/1/5/10
RAID levels	5, 1, 0, 10
Optical drive type
NVMe
RAID support
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	168 mm
Depth	305 mm
Height	353 mm
Weight	5.2 kg

---
