Teltonika Switch TSW304 4 Port Gigabit Industrial unmanaged Switch DIN RAIL
|
67,62 EUR |
|
|
( 80,47 EUR incl. VAT ) ≈ £57.48 | ≈ $75.94 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1997464 |
|---|---|
| Mfg Part No: | TSW304000000 |
| UPC/EAN: | 4779051840144 |
| Weight: | 1.5 kg |
Further GSM/UMTS/LTE from TeltonikaFurther products in category GSM/UMTS/LTE
All products of Teltonika
Product information for Teltonika TSW304000000:

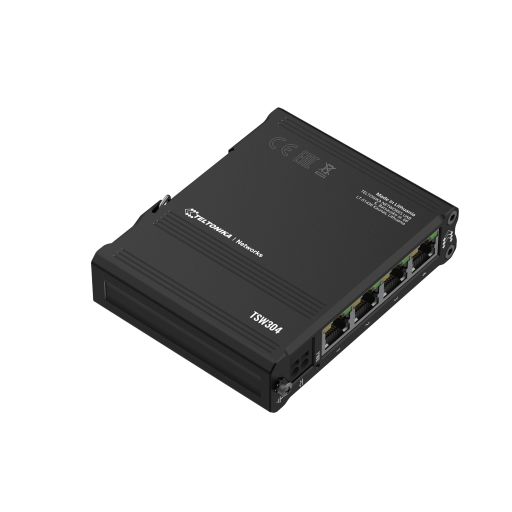

TSW304 - Industrial unmanaged switch, without power supply, 4 port gigabit, DIN-RAIL
The TSW304 is the first unmanaged switch from Teltonika Networks with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports that support the IEEE 802.3, IEEE 802.3u and 802.3az Ethernet standards. Designed with ease of installation in mind, the TSW304 features a compact size with a shockproof housing to go along with its integrated DIN mount. 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions for reliable data throughput. 2-pin industrial socket and wide range of supported supply voltages (7-57 VDC and 9-40 VAC).
Features: Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto-MDI/MDIX crossover Connector: 2-pin socket Input voltage range: 7 - 57 VDC 9 - 40 VACPoE (passive): Passive PoE input on port #1 Power consumption: Idle: 0.26 W / Max: 1.44 W
Package contents: -TSW304 - QSG (Quick Start Guide) - Packaging box
The TSW304 is the first unmanaged switch from Teltonika Networks with an integrated, built-in DIN rail mount. Equipped with four Gigabit Ethernet ports that support the IEEE 802.3, IEEE 802.3u and 802.3az Ethernet standards. Designed with ease of installation in mind, the TSW304 features a compact size with a shockproof housing to go along with its integrated DIN mount. 10/100/1000 Mbps Ethernet ports for economical, high-bandwidth solutions for reliable data throughput. 2-pin industrial socket and wide range of supported supply voltages (7-57 VDC and 9-40 VAC).
Features: Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto-MDI/MDIX crossover Connector: 2-pin socket Input voltage range: 7 - 57 VDC 9 - 40 VACPoE (passive): Passive PoE input on port #1 Power consumption: Idle: 0.26 W / Max: 1.44 W
Package contents: -TSW304 - QSG (Quick Start Guide) - Packaging box
Questions & answers
What is the delivery time of Teltonika Switch TSW304 4 Port Gigabit Industrial unmanaged Switch DIN RAIL?
The article Teltonika Switch TSW304 4 Port Gigabit Industrial unmanaged Switch DIN RAIL is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Teltonika TSW304000000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Teltonika Switch TSW304 4 Port Gigabit Industrial unmanaged Switch DIN RAIL always at the best possible price. We can give you a discount of 2% on Teltonika Switch TSW304 4 Port Gigabit Industrial unmanaged Switch DIN RAIL if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
