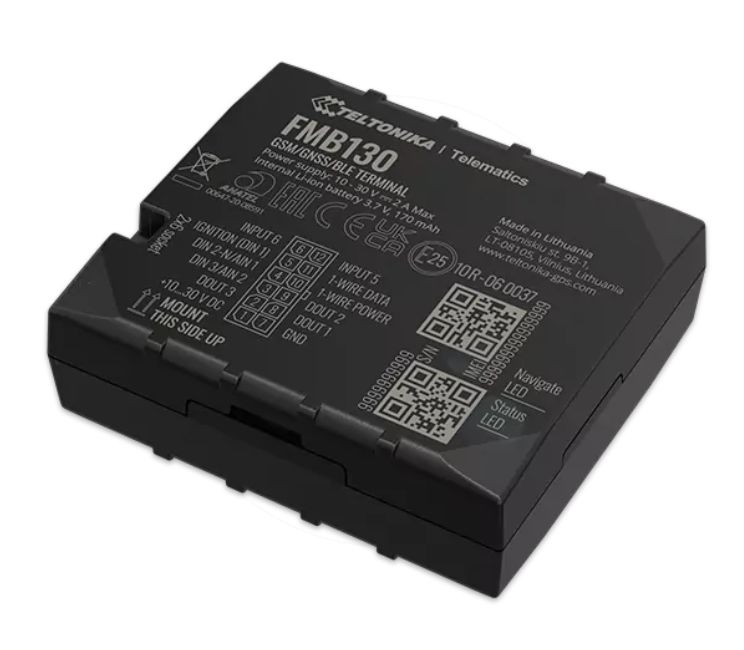

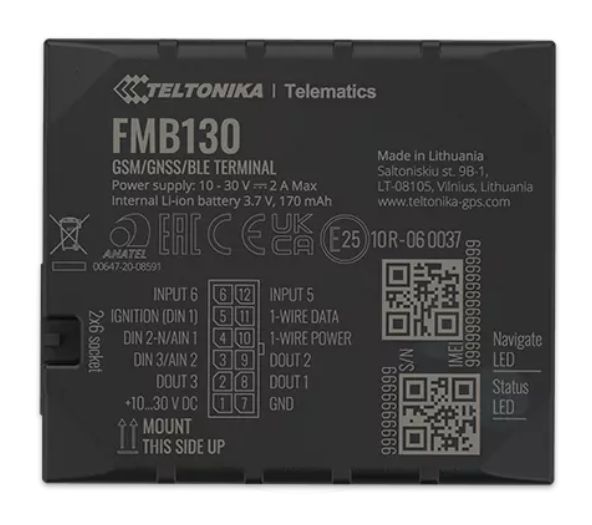

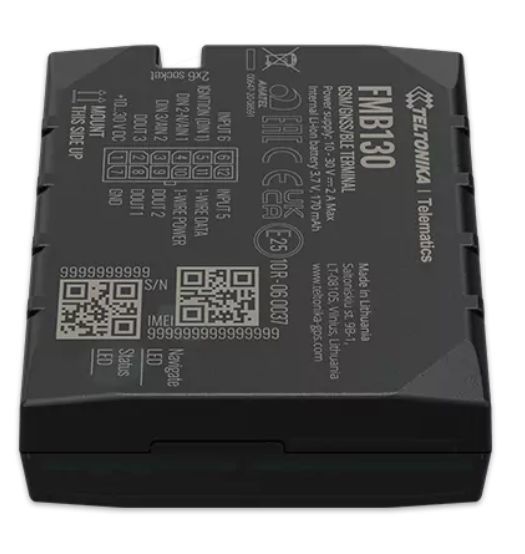

The Teltonika FMB130 2G/GSM Vehicle Tracker
Overview:
The FMB130 is an ADVANCED tracker with internal GNSS, GSM antennas, configurable digital/analog inputs/negative inputs/pulse inputs, three DOUT outputs, Bluetooth connectivity and backup battery.
Teltonika keeps its promise to make IoT easy. The FMB130 device is the first device with negative input capability. This saves you valuable integration time when connecting accessories such as vehicle door sensor, alarm button, seat belt detection and similar sensors or accessories.
Additionally, we have included the ability to enable pulse input for reading fuel flow meter data. Pulse-based fuel consumption control is much more accurate than various types of fuel level sensors and allows for precision when needed. It is the perfect solution for high fuel consumption machines such as cranes, construction vehicles, mining equipment and agricultural equipment.
We have added an additional digital output. Now there are 3 in total! Not surprisingly, DOUT is the most popular connection type on FMB1 family devices. This allows you to use 3 different DOUT scenarios at the same time, e.g. B. Immobilizer, buzzer, alarm lights, door lock and others.
The new FMB130 is the first advanced vehicle tracking system with programmable DIN/AIN/Negative/Pulse input. The first input has the following selection options: Digital, Analog, Negative, Pulse. The second input can be digital or analog.
These new features allow you to use a tracking system for a much wider range of use cases.
Perfect for the following applications: Cranes and construction vehicles Mining equipment Agricultural equipment Features Configurable DIN/AIN for flexible remote monitoring and control 1-Wire® interface for monitoring temperature data and RFID/iButton tags Negative input allows for easier installation of accessories Allows the device to operate without External power source Pulse inputs for data reading from fuel flow meters Bluetooth for external devices and low energy sensors Scope of delivery Teltonika FMB130 Tracker Manual Technical data see data sheet!!
