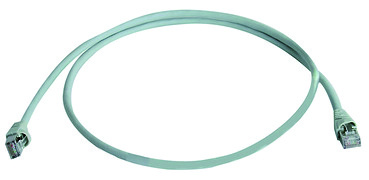

Telegärtner L00002A0112 100008462 patch cable S/FTP Cat.6a (ISO/IEC) 3.0 m MP8 FS500 LSZH grey 1:1 content_copy

The Telegärtner patch cable Cat.6a (ISO/IEC) with manufacturer number L00002A0112 and type 100008462 is a data cable for use in network infrastructures. It has a length of 3 metres and is available in grey. The cable is designed as S/FTP (S-STP), meaning each pair is shielded and the entire cable has an outer shielding layer to minimise electromagnetic interference. The wiring follows EIA/TIA 568B, ensuring a standardised connection sequence for network connectors. The cable construction is strain-relieved and flexible, enabling easy handling and installation.

Applications
This patch cable is designed for use in structured cabling systems, particularly in environments requiring high data rates and low interference. It is suitable for applications in Gigabit and 10-Gigabit Ethernet, where a bandwidth of 500 MHz is required. Typical uses include offices, server rooms, or connecting network devices such as switches, routers, or end devices. The shielding and strain-relieved construction ensure reliable signal transmission even in sensitive environments.

Functions and Features in Detail
The cable features a moulded boot available in 90°, 180°, and 270° angles, allowing flexible mounting on various devices. The boot includes a latch protection mechanism to prevent accidental disconnection of the connector. A variant with a very short boot is also available, which is advantageous in space-constrained installations. The connector shielding is 360° fully enclosed, providing effective protection against electromagnetic interference. The pin wiring follows EN 50173 and references EIA/TIA 568A, ensuring compatibility with various network standards.

Technology Explained Simply
The designation S/FTP means that each individual pair within the cable is shielded (F/FTP) and additionally the entire cable has an outer shielding layer (S/FTP). This double shielding reduces electromagnetic interference and prevents crosstalk between pairs. The 500 MHz bandwidth enables high-speed data transmission, which is essential for modern network applications. The strain relief at the connector prevents mechanical stress on the connection, extending the cable’s lifespan. The use of LSZH material (Low Smoke Zero Halogen) for the cable jacket and boot ensures that in case of fire, only minimal smoke and no toxic halogens are released, enhancing safety during operation.

Compatibility and Accessories
The patch cable is compatible with devices supporting RJ45 connectors. It can be combined with other Cat.6a cables, especially those featuring S/FTP shielding and wiring according to EIA/TIA 568B. The use of AMJ couplers or other connection elements is possible, provided they meet the required connection standards.

Installation and Mounting
Installation is performed by simply plugging the RJ45 connectors into the corresponding sockets of network devices. The moulded boot ensures a secure and stable connection, with angle variants (90°, 180°, 270°) allowing adaptation to different mounting conditions. The strain relief protects the connection from mechanical stress, especially during frequent plugging and unplugging. The flexible construction facilitates cable routing and bending without damaging the internal conductors.

Operational Advantages
The cable provides reliable and stable data transmission with high bandwidth, which is crucial for the performance of modern networks. The double shielding (S/FTP) minimises interference and ensures clear signal transmission. The use of LSZH material enhances fire safety, as only minimal smoke and no toxic gases are released in case of fire. The strain-relieved construction and robust boot extend the cable’s lifespan and reduce maintenance costs. The standardised wiring according to EIA/TIA 568B ensures compatibility with a wide range of network devices.

Protection Rating and Insulation Test
The cable underwent a dielectric withstand voltage test at 6 kV, confirming electrical safety and insulation strength. The fire protection class is stated as not applicable, as the cable is not designed for specific fire protection requirements. The smoke density is 61034-2, indicating smoke development under fire exposure. The materials are halogen-free and flame-retardant, enhancing safety during operation.

General
Cable type	S/FTP -
Bandwidth	500 MHz
Connection sequence	EIA/TIA 568B -
Colour	Grey -
Cable jacket	LSZH -
Connector shielding	360° closed -
Tension relief	Yes -
Bush	sprayed, 90°/180°/270° -
Locking lever	Yes -
Surge insulation test	6 kV
Smoke density	61034-2 -

---
