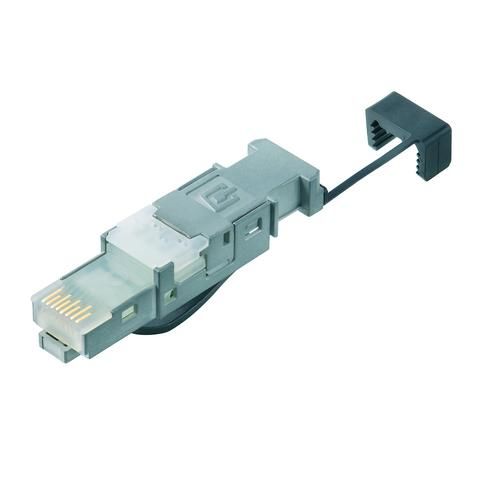

Telegärtner J80026A0003 Telegaertner Field Termination Connector CAT6 RJ45/RJ45 STX

* On order * for solid and stranded wire, AWG22-26, STX IP20 RJ45 field assembly connector AWG22-26 Cat.6 black ------------------------ -------------------------------------------------- ------ Technical Attributes Description STX IP20 RJ45 connector Cat.6 Solid / Stranded AWG22-26 notes with Farbcodierring black, field assembly further technical information product descriptive RJ45 connector on the design in accordance with ISO / IEC 60603-7-5 are in two versions. The 8-pin connector for Cat.6 cable of AWG22 stranded or solid wires AWG22-26-26 can be assembled in the field without tools to install or patch cables with a diameter up to 8.5 mm. It is equipped with a color-coded for EIA / TIA A / B and Profinet, providing a 360 ° shield contact. The rugged, small-sized die-cast zinc housing can be provided in addition to marking with colored Kodierringen. Furthermore, the 8-pin connector is for Cat.6 cable with stranded conductor AWG24-27 and solid wires AWG24-27 program. It is assembled with a crimping tool and also provides a shield and an easy assembly by Vorsortiereinsatz. The strain relief acts on the cable sheath, thus squeezing the veins is excluded. In addition, retrofit, 2-piece taper sleeves are available in different colors. Crimping tools for professional use are available on request. The multi-port capability for connection of the prefabricated cables in patch panels, switches, etc. on both plugs fully gegeben.Mechanische properties Insertion force 750 Material: contacts Phosphor bronze Material: Contact plating 0.75 µ Au over 2 µ Ni Material: Connector housing zinc diecast Material: Hardened PA Material: strain relief PA connection conditions copper conductor diameter: Solid wire 0.4 - 0.64 mm connection conditions copper conductor diameter: Stranded 0:48 - 0.76 mm wire diameter up to 1.6 mm cable diameter 5.5 - 8.5 mm Material: shield - Crimping tool installation Electrical characteristics Contact resistance 500 MOhm Dielectric Strength: Contact Contact > 1000 V dielectric strength: Contact screen> 1500 V Operating current at 50 ° C 1 A Thermal and climatic characteristics Temperature range -40 ° C. .. 80 ° C
