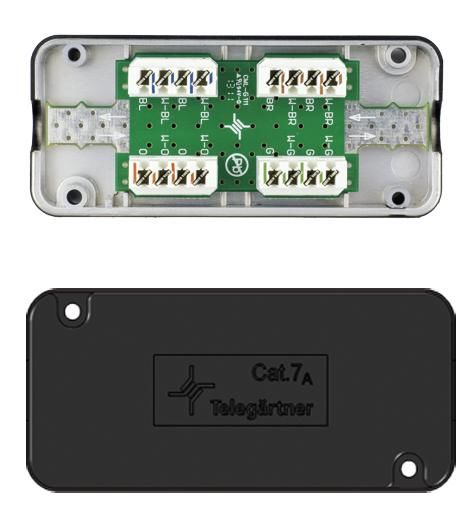

Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a
|
36,70 EUR |
|||||||||||
|
( 43,67 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 437487 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 100023273 | ||||||||||
| UPC/EAN: | 4018359187682 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Telegärtner 100023273:
Thermal and climatic characteristics
Test class to IEC 60068-1 25/070/21
Electrical Properties
Dielectric strength
Contact contact = 1000 V
Contact-screen 1000 V =
Operating current at 50 ° C 1 A
Transmission characteristics Cat.7 to ISO / IEC 11801 Edition 2
Next default values ​​typical values
at 100 MHz 72.4 dB min. 82.3 dB
at 250 MHz 66.4 dB min. 77.1 dB
at 600 MHz 60.7 dB min. 67.1 dB
Return loss default values ​​typical values
at 100 MHz 24 dB min. 28.9 dB
at 250 MHz 16 dB min. 18.7 dB
at 600 MHz 8.4 dB min. 17.9 dB
Insertion default values ​​typical values
at 100 MHz 0.2 dB max. 0.05 dB
0:32 dB at 250 MHz max. 0.1 dB
0:49 dB at 600 MHz max. 0.3 dB
Default values ​​typical values
Resistance mOHM 200 max. <10 mOHM
Stray radiation according to EN 50081-2 and 50082-2
Version: for shielded and unshielded installation cable
Type: VM8-8
Quantity: 1 unit.
Questions & answers
What is the delivery time of Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a?
The article Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100023273 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a always at the best possible price. We can give you a discount of 2% on Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a we can offer you a price of 34,50 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Telegärtner 100023273 Telegaertner connection module VM8-8, 600 MHz J00060A0069 Cat.7a via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
