Telegärtner 100023225 Telegaertner AMJ Module K Cat.6 + J00029K0036 for RJ 11/12-Stecker
|
20,20 EUR |
|||||||||||
|
( 24,04 EUR incl. VAT ) ≈ £17.17 | ≈ $22.68 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 873153 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 100023225 | ||||||||||
| UPC/EAN: | 4018359318413 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | 100023225 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Telegärtner 100023225:

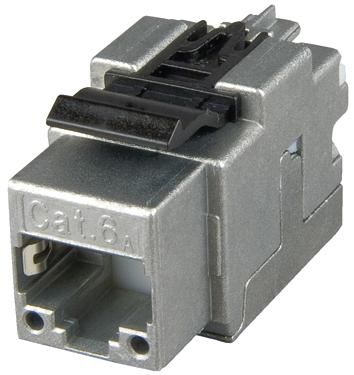

The fully shielded AMJ module K Cat.6A (ISO/IEC) for 10 Gigabit Ethernet has the outstanding transmission properties that you rightly expect from Telegärtner. The production of the Cat.6A (ISO/IEC) core and the IDC insulation displacement connectors on a fully automated production line guarantees you an excellent price/performance ratio, combined with quality control within the production line that sets standards. With dimensions of 19.3 x 14.7 mm, the module fits into the mounting cutouts of a large number of central plates and 19-inch patch panel solutions available worldwide. The IDC insulation displacement connector developed by Telegärtner guarantees reliable contact for conductor cross-sections from AWG22/1 for solid conductors to AWG27/7 for flexible conductors. This makes the AMJ module K Cat.6A (ISO/IEC) also recommended for connecting patch cables AWG24/7, AWG26/7 or AWG27/7 to the IDC insulation displacement terminal for a consolidation point.
Features:
10 Gigabit Ethernet compliant (IEEE 802.3an),
Cat.6A (ISO/IEC) in accordance with IEC 60603-7-51,
suitable for POE+ (Power over Ethernet Plus),
contact overbending protection: =750 mating cycles with RJ45/RJ11/RJ12 connectors,
link certification: Class EA (ISO/IEC) in accordance with ISO/IEC 11801,
optically monitored testing of RJ45 contact heights,
universal, globally available installation dimensions for mounting cutouts 19.3 x 14.7 mm,
fully automatically produced real Cat.6A (ISO/IEC) RJ45 core for consistently high quality standards
Notes: tool-free connection technology, suitable for RJ45/11/12 connectors
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Short name: AMJ module K Cat.6A (ISO/IEC) T568A
Installation dimension: Z121
The item price shown refers to 2 pieces Telegärtner 100023225
Features:
10 Gigabit Ethernet compliant (IEEE 802.3an),
Cat.6A (ISO/IEC) in accordance with IEC 60603-7-51,
suitable for POE+ (Power over Ethernet Plus),
contact overbending protection: =750 mating cycles with RJ45/RJ11/RJ12 connectors,
link certification: Class EA (ISO/IEC) in accordance with ISO/IEC 11801,
optically monitored testing of RJ45 contact heights,
universal, globally available installation dimensions for mounting cutouts 19.3 x 14.7 mm,
fully automatically produced real Cat.6A (ISO/IEC) RJ45 core for consistently high quality standards
Notes: tool-free connection technology, suitable for RJ45/11/12 connectors
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Short name: AMJ module K Cat.6A (ISO/IEC) T568A
Installation dimension: Z121
The item price shown refers to 2 pieces Telegärtner 100023225
