Telegärtner 100023038 Telegaertner AWG 22-27 MFP8 J00026A2001, confectionery field. Connector 568B

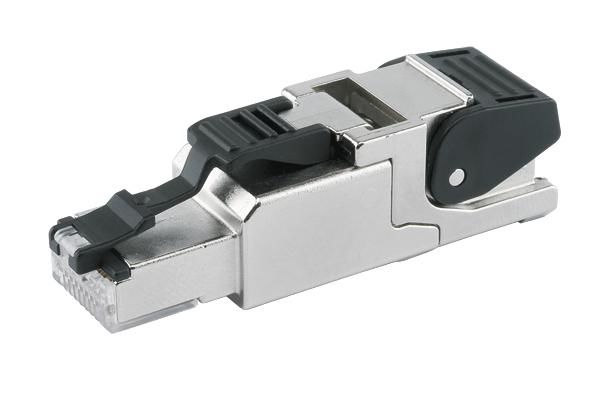

The field-assembly RJ45 connectors of the MPF8 series from Telegärtner can be mounted directly on the installation cable to connect end devices with an RJ45 connection to the network; a junction box and patch cable are not required. The MFP8 series is the optimal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links) and Direct Attach Cabling (DAC).
With the field-assembly RJ45 connector MFP8 from Telegärtner, end devices with an RJ45 connection can be connected to the installation cable easily, quickly and safely. If the end device is mounted above the cable outlet or the cable is routed into the protective housing of the device, the connection is invisible and inaccessible to unauthorized persons, which not only looks good, but also offers the user the decisive plus in terms of security against manipulation.
Features:
Connector in accordance with IEC 60603-7 RJ45 8P8C,
suitable for 10 Gigabit Ethernet 10GBASE-T in accordance with IEEE 802.3,
suitable for Four Pair Power over Ethernet 4PPoE in accordance with IEEE 802.3bt,
four-chamber wire manager with color coding T568B,
for shielded cabling,
multi-port capable,
can be assembled in 60 seconds and without special tools,
optimized for on-site assembly,
IPC piercing contacts suitable for solid and stranded conductors,
protection class IP20,
suitable for cable outer diameters 5.0 to 9.0 mm,
three-stage locking cable strain relief,
with pre-assembled protective cap,
UL-listed,
SAP article designation CU-CN MFP8 T568B C6A D1-1.6
Notes: AWG 24/1-22/1, AWG 27/7-22/7, with pre-assembled Protective cap
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Short name: MFP8 T568 B Cat.6A (ISO/IEC)
