Telegärtner 100022997 J00023A0056 VAD 8/8 Ap, Compact Class EA shielded alpine white

Your rating:
Average rating
Rating for Telegärtner 100022997 J00023A0056 VAD 8/8 Ap, Compact Class EA shielded alpine white
( 4.4 / 5 ) 8 ratings
Telegärtner 100022997
This image may differ from the desired article.
22,55 EUR
( 26,83 EUR incl. VAT )
2025-11-05Delivery time on requestinfo_outline
1x Telegärtner 100022997 J00023A0056 VAD 8/8 Ap, Compact Class EA shielded alpine white
Lieske Part No.:848558
Mfg Part No: 100022997
UPC/EAN: 4018359218980
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
1521,20 EUR
3019,84 EUR
7018,49 EUR
10017,14 EUR

Product information for Telegärtner 100022997:

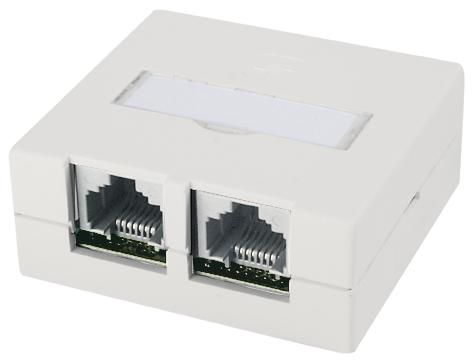

The compact VAD 8/8 Ap junction box offers top performance in the smallest of spaces. At just 57 x 53 x 23.3 mm, it is one of the smallest surface-mounted boxes suitable for 10 Gigabit Ethernet. The LSA-Plus insulation displacement contacts can be wired according to T568A and T568B, and a sturdy screw terminal ensures reliable cable strain relief and excellent shield contact. The housing in pure white (similar to RAL 9010) has a labeling field with a hinged, captive transparent cover.
Performance features:
suitable for 10 Gigabit Ethernet in accordance with IEEE 802.3an,
transmission properties: PL Class EA (ISO/IEC) 500 in accordance with ISO/IEC 11801, EN 50173-1,
surface-mounted housing with hinged and captive, transparent labeling field,
connection of the installation cable with LSA-Plus insulation displacement terminals with color marking in accordance with EIA/TIA 568A and B,
shield contact and cable strain relief via screw terminal for both cables together,
compact design for surface mounting with two RJ45 outputs parallel to the mounting level,
shielded version,
RJ45 outlet downwards,
cable feed from above,
fastening with 2 screws max. 3.5 mm diameter,
plastic housing with snap-on cover
Fire protection class: Not relevant
Burning dripping: Not relevant Smoke development: Not relevant Acid
development
: Not relevant
Design: shielded, surface mounting
Color: pure white RAL 9010
Short name: VAD 8/8 Ap Compact-S Class EA (ISO/IEC) 500
