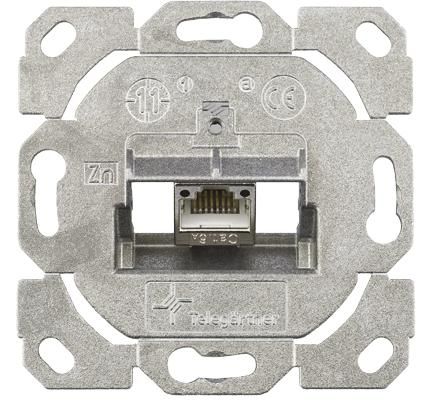

Telegärtner 100022979 TEGA module holder AMJ-S 1-gang UP/0 flex with 1AMJ-S DD module Cat.6a T568B

Prepared for all eventualities: Telegärtner's wide range of module holders provides the right product for every need. Whether in the parapet channel, on or under the plaster. Either as an unequipped version for individual assembly or already pre-equipped with our high-performance modules. The equipped versions ensure transmission properties in accordance with Cat.6A, in accordance with EN 60603-7-51. The socket spacing of the proven AMJ45 junction box and the UAE junction box is guaranteed. This gives the user unimagined design options when dealing with their daily cabling tasks.
Performance features:
Cat.6A (ISO/IEC) according to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100,
link certification: Class EA (ISO/IEC) according to ISO/IEC 11801,
10 Gigabit Ethernet compliant (IEEE 802.3an),
contact overbending protection: =750 mating cycles with RJ45/RJ11/RJ12 connectors,
suitable for PoE+ according to IEEE 802.3at,
with design-capable module holder AMJ-S Up/0 flex,
can be combined with covers from various switch range manufacturers,
integrated cable clamp for cable diameters up to 9 mm,
universal worldwide available installation dimension for mounting cutouts 19.3 x 14.7 mm,
optically monitored testing of the RJ45 contact heights,
AMJ-S DD: with integrated protection against damage to the contacts due to automatic release of the plug connection
Notes: for parapet duct and underfloor, for flush-mounted installation, appropriate electronic boxes must be provided, 45° outlet
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: Module carrier including 1 AMJ-S DD module Cat.6A (ISO/IEC) T568B, can be combined with covers from various switch range manufacturers*
Series: AMJ-S
Short name: design-capable module holder AMJ-S DD 1-way UP/0 flex
Type: J00020A0525
