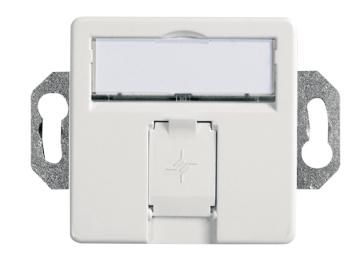

Telegärtner 100022961 TEGA AMJ45/B 8 K UP/50 2-hole carrying ring Cat.6a alpine white

One box for all: The solid AMJ45 data connection box is the universal connection box for almost all requirements, such as here for installation in floor boxes, and at an attractive price. The cable feed can be selected from 8 sides in 45-degree increments. With its low installation depth and the parts of the support ring that can be removed without tools, the AMJ45 can also be installed where other boxes take up too much space. The wires of the data cable are conveniently placed from the front, which enables simple and time-saving installation even with short cable ends and confined spaces. Thanks to the earthing connections on all four corners, the AMJ45 can also be easily integrated into special earthing and equipotential bonding systems. The box meets the transmission properties Cat.6A (ISO/IEC) according to ISO/IEC 11801, EN 50173-1.
The patented, integrated contact over-bending protection protects the connection contacts if RJ11 or RJ12 plugs from telephone or fax machines are accidentally plugged in. Even after repeated incorrect plugging, the AMJ45 offers the full data rate. The contacts of the AMJ45 are optimized for remote powering of end devices (Remote Powering, Power over Ethernet): Breakaway sparks that occur when the plug is unplugged under load do not reach the contact areas used for data transmission.
The AMJ45 is included in Telegärtner's 25-year system guarantee program.
Performance features:
Suitable for Power over Ethernet in accordance with IEEE 802.3af,
fully shielded,
360° shield contact and cable strain relief via two separate screw terminals for the cable outer jacket and shield,
cable feed from all directions possible in 8x 45° steps,
optional horizontal and vertical installation option in the parapet duct thanks to variable cable entry,
design with low installation depth, easy installation in the floor tank thanks to lateral cable routing within the device cup,
possibility of plug-in earthing connection at all 4 corners, in accordance with DIN 46342-1, 6.3 mm,
can be combined with covers from various switch range manufacturers,
controlled wire pre-sorting guarantees wire routing without risk of damage and good transmission properties,
central plate with hinged and captive, transparent labeling field,
protective flaps secured,
contact overbending protection: 6- (RJ11/12) and 8-pin plugs (RJ45) can be used without additional assembly effort be used alternately in the sockets
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: Floor tank installation, 1xRJ45
Colour: alpine white
Short name: AMJ45/B 8 K Up/50 Cat.6A (ISO/IEC)
Type: J00020A0507

The item price shown refers to 5 pieces Telegärtner 100022961
