Telegärtner 100022946
TEGA AMJ45 8 UP/0 Cat.5e without central plate
|
75,14 EUR |
|||||||||||
|
( 89,42 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 5 pieces | |||||||||||
| Lieske Part No.: | 757503 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 100022946 | ||||||||||
| UPC/EAN: | 4018359276744 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

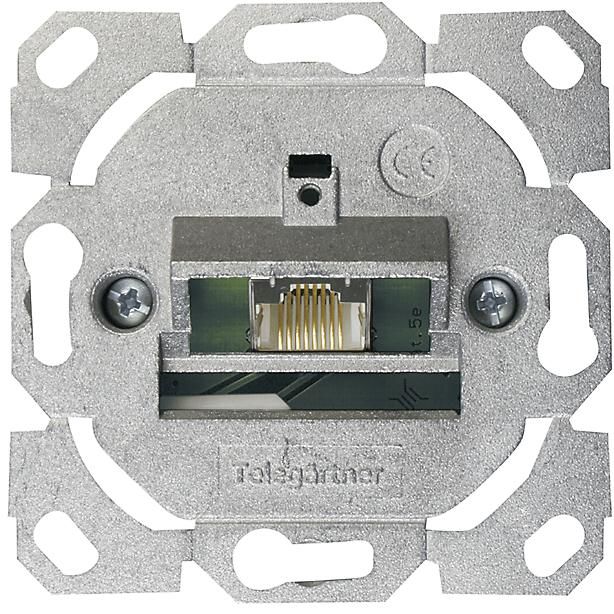

Product information for Telegärtner 100022946:
The cable feed can be selected from 8 sides in 45-degree increments. With its low installation depth and the parts of the support ring that can be removed without tools, the AMJ45 can also be installed where other boxes take up too much space. The wires of the data cable are conveniently placed from the front, which enables simple and time-saving installation even with short cable ends and confined spaces. Thanks to the earthing connections on all four corners, the AMJ45 can also be easily integrated into special earthing and equipotential bonding systems. The box meets the transmission properties of class 5e according to ISO/IEC 11801, DIN EN 50173-1.
The patented, integrated contact over-bending protection protects the connection contacts if RJ11 or RJ12 plugs from telephone or fax machines are accidentally plugged in. Even after repeated incorrect plugging, the AMJ45 offers the full data rate. The contacts of the AMJ45 are optimized for remote powering of end devices (Remote Powering, Power over Ethernet): Breakaway sparks that occur when the plug is unplugged under load do not reach the contact areas used for data transmission.
The AMJ45 is included in Telegärtner's 25-year system guarantee program.
Performance features:
Suitable for Power over Ethernet in accordance with IEEE 802.3af,
fully shielded,
360° shield contact and cable strain relief via a screw terminal for the cable outer jacket and shield,
cable feed from all directions possible in 8x 45° steps,
optional horizontal and vertical installation option in the parapet duct thanks to variable cable entry,
design with low installation depth, easy installation in the floor tank thanks to lateral cable routing within the device cup,
possibility of plug-in earthing connection at all 4 corners, in accordance with DIN 46342-1, 6.3 mm,
can be combined with covers from various switch range manufacturers,
controlled wire pre-sorting guarantees wire routing without risk of damage and good transmission properties,
protective flaps secured,
contact overbending protection: 6- (RJ11/12) and 8-pin plugs (RJ45) can be used alternately in the sockets without additional assembly effort
Fire protection class: Not relevant
Burning dripping: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: Parapet duct, 1xRJ45
Short name: AMJ45 8 Up/0 Cat.5 without central plate
The item price shown refers to 5 pieces Telegärtner 100022946
Questions & answers
What is the delivery time of Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate?
The article Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100022946 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate always at the best possible price. We can give you a discount of 2% on Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate we can offer you a price of 70,63 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Telegärtner 100022946 TEGA AMJ45 8 UP/0 Cat.5e without central plate is offered by us in a sales unit of 5 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
