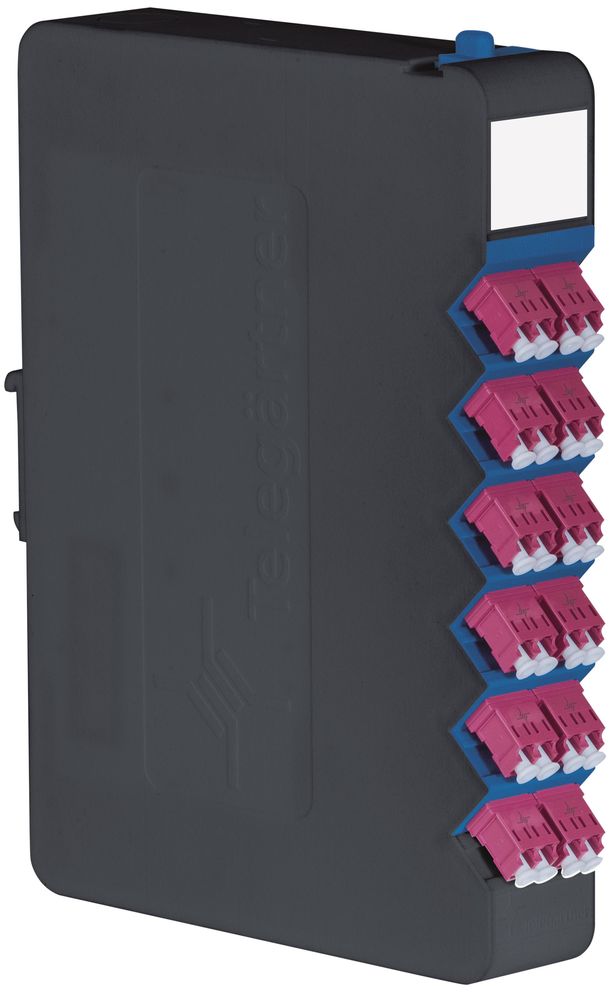

Telegärtner 100022839 TEGA STX DIN rail distributor modular 6xLCD 12xPigtails OM2
|
266,03 EUR |
|
|
( 316,58 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1769680 |
|---|---|
| Mfg Part No: | 100022839 |
| UPC/EAN: | 4018359531782 |
| Weight: | 0 kg |
Product information for Telegärtner 100022839:
All too often, distributors are installed that are oversized for current requirements - either to be able to take future expansions into account or because there is no more suitable solution. The new modular distributor from Telegärtner can be adapted exactly to the actual requirements and later expanded as needed during operation without the need for tools, which saves a lot of money.
The connector couplings are mounted at an angle of 45 degrees so that patch cables can be easily plugged in and out with minimal space required.
Despite their compact dimensions of 35 x 215 x 155 mm (width 2 pitch units (TE)), the modules that can be stacked together offer generous excess length accommodation for fibers and wires. The cable can be fed in from four directions (top, bottom, top rear, bottom rear) and can be determined on site. The modules can be mounted on TH35 mounting rails in accordance with DIN 60715 or on the wall.
Notes: Note: For ready-to-connect fiber optic routes created with the TICNET configurator, a uniform whip length of 0.7 m should be selected for optimal cable routing.
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Number of couplings: 6
Designation: STX modular mounting rail distributor 6x LC-D + 12 PT OM2
Color: beige
Housing: STX modular mounting rail distributor
Housing color: anthracite gray (similar to RAL 7016)
Couplings: LC-D
Dimensions in mm: 35 x 215 x 155
Pigtails: see article number key / see article description
Protection class: IP30
Splice cassettes: Only variants with pigtails (PT): 1 piece, type Telekom, with 2x splice holders for 12x crimp/shrink splice protection each. Only versions with pigtails (PT): 1 pcs, type Telekom, with 2x splice holders for 2x 12x crimp-/splice protectors
Description: STX modular mounting rail distributor 6x LC-D + 12 PT OM2
Scope of delivery: Basic housing with pre-assembled couplings, 4 break-out openings for mounting the cable glands, 2 connecting bars, 1 cable gland M20x1.5, assembly instructions, packaging, versions with pre-assembled pigtail sets also contain ready-to-splice pigtail sets color-coded in accordance with VDE 0888, 2 cable ties, and a splice cassette with splice holders
Type: H82050F2002
