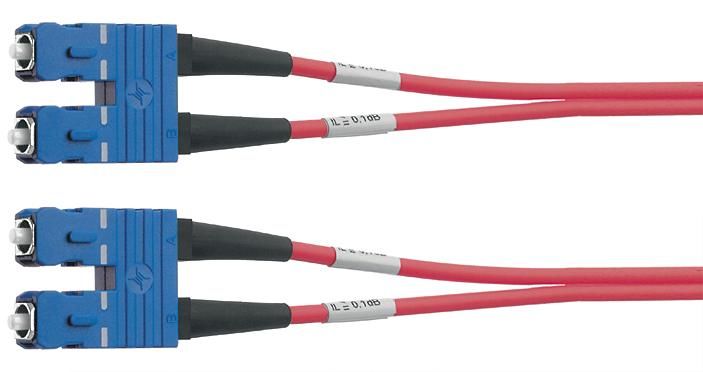

Telegärtner 100011800 L00881A0028 duplex patch cords, 50/125 OM4 L = 2m 2xSC Duplex connector

The SC duplex fiber optic patch cables from Telegärtner can be used within structural cabling (ISO/IEC 11801) in, for example, data centers, office buildings, telecommunications rooms, and all other places where fiber optic patch cables are required. Of all the components in a transmission line, patch cables are subject to the highest loads and the greatest wear. This is why many users rely on patch cables from Telegärtner: optimally coordinated components, the highest quality standards, a seamlessly controlled manufacturing process and 100% attenuation measurement guarantee safe, reliable network operation. The patch cables in the categories OM3-OM5 (IEC 60793-2-10 Type A1a.2-4, ITU G.651.1) and OS2 (IEC 60793-2-50 Type B1.3, ITU G.657.A1) also have bend-optimized fibers to enable optimal transmission even in confined spaces. Patch cables in the standard lengths 1.2, 3, 5 and 10m are available from stock, and other variants can be configured quickly and easily via Ticnet.
Performance characteristics:
1,2 3, 5 and 10m standard lengths, other variants can be configured via Ticnet,
Cable type: Duplex Zipcord 2.8x5.7,
LSZH,
Connector S.1: SC-Duplex (IEC 61754-4),
Connector S.2: SC-Duplex (IEC 61754-4),
OM4,
crossed (according to ISO/IEC 11801): Yes,
Design: PC,
IL typ. 30 dB,
Mating cycles:

1000

Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Application: Patch cable
Fiber type: G50/125 OM4
Housing color: black
Cable color: violet
Connector design: SC Duplex
Length: 2 m
Cable dimensions mm: 2.8 x 5.7
Type: L00881A0028
