Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige

Your rating:
Average rating
product review for Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige
( 4.3 / 5 ) 3 ratings

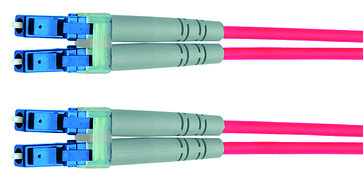

Telegärtner 100011323
This image may differ from the desired article.
Telegärtner 100011323Telegärtner 100011323Telegärtner 100011323Telegärtner 100011323
22,97 EUR
( 27,33 EUR incl. VAT )
≈ £19.20  |  ≈ $25.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: 2 pieces
1x Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige
Lieske Part No.:159436
Mfg Part No: 100011323
UPC/EAN: 4018359263133
Weight:0.1 kg
Type:100011323

Product information for Telegärtner 100011323:

The Telegärtner LWL cable, type 100011323, is a duplex patch cable for structured cabling in accordance with ISO/IEC 11801. It is used to connect optical components in data centres, office buildings, telecommunications rooms, and other environments where a reliable optical fibre connection is required. The cable has a length of 2 metres and is equipped with LC duplex connectors at both ends, specified according to IEC 61754-20. The fibre types are G50/125 OM2, indicating a multimode fibre with a core diameter of 50 µm and a cladding diameter of 125 µm. The cable colour is orange, and the housing colour is beige, which facilitates identification in cable management.

Applications
This patch cable is designed for use in structured cabling systems, particularly in environments with high demands for reliability and performance. It is suitable for applications in data centres, server rooms, telecommunications installations, and office buildings, where stable and fast data transmission via optical fibre is required. Use in confined spaces is supported by the bend-optimised fibres, which allow flexible handling even at tight bending radii.

Functions and Features in Detail
The cable is configured as a duplex connection, meaning two individual fibres are integrated into one cable to enable bidirectional data transmission. The LC duplex connector design ensures a compact and secure connection. The connector finish is PC (Physical Contact), ensuring optimal optical contact surface and low attenuation. The typical insertion loss (IL) is under 0.25 dB, ensuring high signal quality. The return loss (RL) is typically above 30 dB, minimising interference from reflected light. The connectors are designed for more than 1000 mating cycles, ensuring high mechanical durability and long service life.

Technology Explained Simply
The G50/125 OM2 fibre used is a multimode fibre suitable for short to medium transmission distances. The designation OM2 refers to the multimode fibre category according to ISO/IEC 11801. The orange cable colour is internationally standard for multimode optical fibre cables. The cable is constructed as a zipcord with dimensions of 2.8 x 5.7 mm, enabling compact and flexible handling. The material is LSZH (Low Smoke Zero Halogen), meaning that in the event of fire, only minimal smoke and no harmful halogen compounds are released. The cable construction is designed for indoor use.

Compatibility and Accessories
The cable is designed for use in structured cabling systems in accordance with ISO/IEC 11801 and can be combined with other components of this standard. It is configured as a crossover cable, which is required according to ISO/IEC 11801 for certain applications. Additional lengths and variants, for example in other fibre types such as E9/125 or G62.5/125, are available via the TICNET configurator from Telegärtner. Compatibility with other optical fibre connectors and components is ensured by the standardisation of the LC duplex connectors.

Installation and Mounting
Installation is carried out by simply inserting the LC duplex connectors into the corresponding outlets or devices. The connectors are equipped with a screw lock to ensure a secure connection. The cables are intended for indoor use and do not require special mounting tools. The bend-optimised fibre construction allows flexible placement even in confined spaces.

Operational Advantages
The high quality of components, seamless manufacturing process, and 100% attenuation testing ensure stable and reliable operation. The low insertion loss and high return loss guarantee clear signal transmission. The high number of mating cycles enables long service life, even with frequent plugging and unplugging. The LSZH coating increases safety in the event of fire, as no harmful gases are released.

General
Fibre typeG50/125 OM2
Cable typeDuplex Zipcord
Connector formLC Duplex
Connector standardIEC 61754-20
ModelPC
Insertion loss< 0,25 dB
Return loss> 30 dB
Plug cycles> 1000
Cable colourOrange
Colour housingBeige
MaterialLSZH
ApplicationPatch cable
Wiring standardISO/IEC 11801
Cable constructionDuplex
CrossedYes


Questions & answers

What is the delivery time of Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige?

The article Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100011323 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige always at the best possible price. We can give you a discount of 2% on Telegärtner 100011323 LWL cable routing cable 2xG50/125 OM2 2.0 m 1xLC Duplex beige if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
