Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua

Your rating:
Average rating
Rating for Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua
( 0 / 5 ) 0 ratings
Telegärtner 100011003

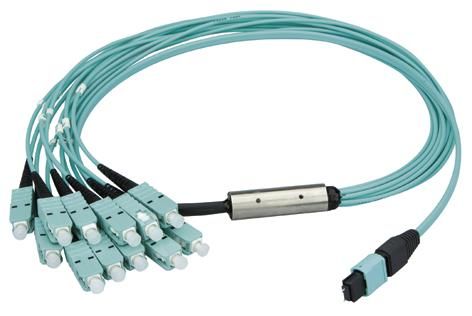

This image may differ from the desired article.
401,84 EUR
( 478,19 EUR incl. VAT )
2025-11-16Delivery time on requestinfo_outline
1x Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua
Lieske Part No.:950494
Mfg Part No: 100011003
UPC/EAN: 4018359379575
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
4383,76 EUR
8365,67 EUR
12347,59 EUR
16329,51 EUR

Product information for Telegärtner 100011003:

Due to the modularity of Telegärtner's MPO/MTP cabling system, installers and operators spend less time and effort installing, modifying and maintaining structured communications cabling for today's and tomorrow's data centers (according to EN50173-5:2007 and ISO/IEC 24764:2010). The MPO/MTP connector, which is specified and standardized in the IEC 61754-7 and TIA/EIA 604-5 standards, is the first choice for an ITS (Information Transport System) in the commercial buildings and data centers of tomorrow, which require ever greater bandwidths and higher speeds. It can be used for parallel optical applications such as Infiniband with data rates of up to 120 Gb/s as well as for future Ethernet protocols with 40 Gb/s and 100 Gb/s over OM3, OM4 and OS2 multimode fibers. Similar to the well-known MT-RJ connector, the MPO/MTP connector contains multiple fibers in a single high-precision ferrule that can be PC or APC polished to achieve a typical insertion loss of 0.25 dB and a return loss of >60 dB for singlemode and an insertion loss of 0.2 dB and a return loss of >30 dB for multimode.
Performance features:
Customer-specific lengths available in the TICNET configurator at www.telegaertner.com/ticnet,
Low Insertion Loss on request,
Polarity Type A, Type B and C on request
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development
: Not relevant Acid development: Not relevant
Fiber type: G50/125 OM3
Housing color: MPO PC: turquoise, LC PC: turquoise
Cable color: turquoise
Connector design: 1st side MPO PC, 2nd side LC PC
Length: 3 m


Questions & answers

What is the delivery time of Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua?

The article Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100011003 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua always at the best possible price. We can give you a discount of 2% on Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua we can offer you a price of 383,76 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Telegärtner 100011003 L00832A0026 MPO Harness 12x2,1mm, OM3 12LC MM 3,0m MPOm + LC MM aqua via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
