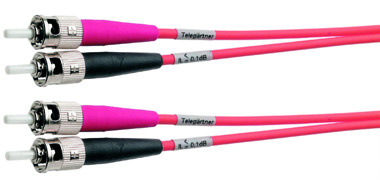

Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing

Your rating:
Average rating
product review for Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing
( 4 / 5 ) 3 ratings
Telegärtner 100010816
This image may differ from the desired article.
Telegärtner 100010816Telegärtner 100010816Telegärtner 100010816
48,91 EUR
( 58,20 EUR incl. VAT )
≈ £40.94  |  ≈ $53.75
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing
Lieske Part No.:672579
Mfg Part No: 100010816
UPC/EAN: 4018359203764
Weight:0.1 kg
Type:100010816

Product information for Telegärtner 100010816:

The Telegärtner Duplex cable 50/125 OM2 is an LWL patch cable for use in fibre optic networks. It connects two fibre optic connectors in ST plug format and is specifically designed for multimode transmissions. The cable has a length of 10 metres and is supplied in a standard version with an orange protective jacket, which is typical for multimode fibre optic cables. The fibre type designation G50/125 OM2 refers to a fibre optic with a core diameter of 50 µm and a cladding diameter of 125 µm, complying with the OM2 standard. This standard is suitable for data transmissions in the range of 500 Mbit/s to 1 Gbit/s over distances up to 550 metres, depending on the network standard.

Applications

The cable is designed for use in structured cabling systems, particularly in data centres, office buildings or industrial facilities, where a reliable fibre optic connection between switches, servers or other network devices is required. The use of duplex cables enables simultaneous transmission in both directions, which is necessary for bidirectional communication in networks. The standard length of 10 metres is suitable for connections over medium distances, for example between rack systems or between a network switch and a patch panel.

Functions and equipment in detail

The cable features four ST plugs, with two plugs attached at each end of the cable, forming the duplex structure. The plugs are housed in a metal housing, providing mechanical stability and better protection against mechanical stress. The orange cable colour serves as a visual indicator for multimode fibre optic cables and facilitates identification in cable management. The cable dimensions are 2.8 mm x 5.7 mm, indicating a compact and flexible design suitable for use in confined cabling spaces.

Technology explained simply

The designation OM2 refers to the multimode fibre optic standard, defined for a specific bandwidth and transmission range. The 50/125 µm fibre is designed for high data rates over medium distances. The ST plug design is one of the older, but still widely used, connectors in the fibre optic field, secured by a screw lock. The use of metal housings on the plugs increases mechanical strength and provides better protection against contamination and mechanical damage. The cable is designed as a patch cable, i.e. for connecting network devices within a local network.

Compatibility and accessories

The cable is compatible with all devices that support ST plugs for multimode fibre optic. It can be used in conjunction with patch panels, switches, routers or other network devices that have a fibre optic interface in ST format. Standard lengths of 1 m, 2 m, 3 m, 5 m and 10 m are available, with custom lengths being manufactured via the TICNET configurator from Telegärtner.

Installation and mounting

Installation is carried out by simply inserting the ST plugs into the corresponding sockets of the network devices. The plugs are equipped with a screw lock, ensuring a secure connection. The cable length of 10 metres allows for flexible device placement, while the cable length should be considered in the cabling plan to avoid unnecessary tension or bending. The orange protective jacket facilitates visual differentiation from other cable types in the patch field.

Advantages in operation

The cable provides a reliable and stable fibre optic connection with high bandwidth and low signal distortion. The use of metal housings on the plugs increases lifespan and mechanical robustness. The standardisation of the plug design (ST) and the fibre type (OM2) ensures broad compatibility with existing network infrastructures. The cable extension of up to 10 metres enables flexible network design without additional amplifiers or converters.

General
Fibre typeG50/125 OM2
Cable colourOrange
Connector formST
ApplicationPatch cable
Number of connectors4
Plug materialMetal housing


Questions & answers

What is the delivery time of Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing?

The article Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100010816 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing always at the best possible price. We can give you a discount of 2% on Telegärtner 100010816 Duplex cable management 50/125 OM2 L=10 m 4xST connector metal housing if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
