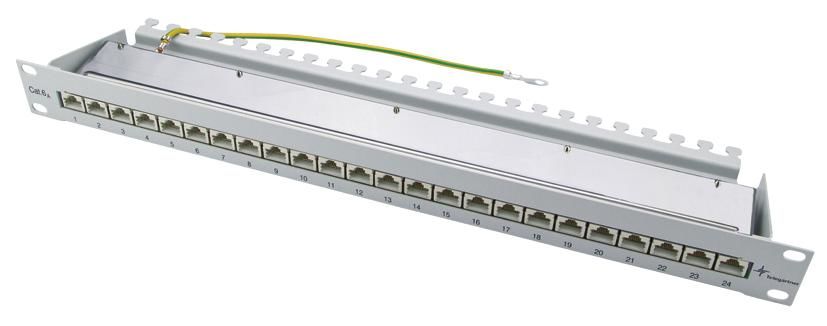

Telegärtner 100007016 TEGA 19z patch panel shielded 1U RAL7035 MPP24-HS K Cat.6a
|
264,82 EUR |
|
|
( 315,14 EUR incl. VAT ) ≈ £225.10 | ≈ $297.39 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 493392 |
|---|---|
| Mfg Part No: | 100007016 |
| UPC/EAN: | 4018359363314 |
| Weight: | 1.533 kg |
| Type: | 100007016 |
Product information for Telegärtner 100007016:
Design your network simply and clearly with the MPP series copper patch panel. All cables can be managed effectively and in a space-saving manner. The port numbering guarantees clarity. The shielding cover can be opened easily, and thanks to its easy handling, the connection-friendly patch panel saves time and hassle. Regardless of whether it is a private or small company network. Various versions of 12, 16 or 24 connections always offer the right solution, all are mounted on a common circuit board and guarantee transmission properties of category 6A (ISO/IEC) in accordance with ISO/IEC 11801, DIN EN 50173-1.
Features:
19'/10' rack housing 1 HE with 12, 16 or 24 RJ45 connection sockets on a common circuit board,
360° shield contact through clamps directly on the circuit board, without additional twisting of the shielding braid (shielded version),
connection of the wires via LSA-Plus insulation displacement terminals with color marking in accordance with TIA 568 A and B,
easy to connect when the twisted length of the connecting wires is kept to max. 13 mm,
sufficient distance between the connection terminal and the shield contact point on the circuit board, reduces the possibility of a short circuit between the shielding braid and the connecting wires,
Cat.6A (ISO/IEC), Class EA (ISO/IEC) 500 & Cat.6A versions with contact over-bending protection: >750 mating cycles with RJ45/RJ11/RJ12 plugs,
front panel printed with numbers of the Connection sockets,
housing made of sheet steel, light gray (RAL 7035) or black powder-coated, shielding hood made of stainless steel,
cable strain relief using enclosed cable ties without screws and special tools,
horizontal circuit board,
potential connection via an enclosed PE cable,
tool-free fastening of the shielding hood (shielded version)
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: 24 x RJ45 shielded
Color: light gray RAL 7035
Short name: MPP24-HS K Cat.6A (ISO/IEC)
Features:
19'/10' rack housing 1 HE with 12, 16 or 24 RJ45 connection sockets on a common circuit board,
360° shield contact through clamps directly on the circuit board, without additional twisting of the shielding braid (shielded version),
connection of the wires via LSA-Plus insulation displacement terminals with color marking in accordance with TIA 568 A and B,
easy to connect when the twisted length of the connecting wires is kept to max. 13 mm,
sufficient distance between the connection terminal and the shield contact point on the circuit board, reduces the possibility of a short circuit between the shielding braid and the connecting wires,
Cat.6A (ISO/IEC), Class EA (ISO/IEC) 500 & Cat.6A versions with contact over-bending protection: >750 mating cycles with RJ45/RJ11/RJ12 plugs,
front panel printed with numbers of the Connection sockets,
housing made of sheet steel, light gray (RAL 7035) or black powder-coated, shielding hood made of stainless steel,
cable strain relief using enclosed cable ties without screws and special tools,
horizontal circuit board,
potential connection via an enclosed PE cable,
tool-free fastening of the shielding hood (shielded version)
Fire protection class: Not relevant
Burning droplets: Not relevant
Smoke development: Not relevant
Acid development: Not relevant
Design: 24 x RJ45 shielded
Color: light gray RAL 7035
Short name: MPP24-HS K Cat.6A (ISO/IEC)
Questions & answers
What is the delivery time of Telegärtner 100007016 TEGA 19z patch panel shielded 1U RAL7035 MPP24-HS K Cat.6a?
The article Telegärtner 100007016 TEGA 19z patch panel shielded 1U RAL7035 MPP24-HS K Cat.6a is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100007016 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telegärtner 100007016 TEGA 19z patch panel shielded 1U RAL7035 MPP24-HS K Cat.6a always at the best possible price. We can give you a discount of 2% on Telegärtner 100007016 TEGA 19z patch panel shielded 1U RAL7035 MPP24-HS K Cat.6a if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
