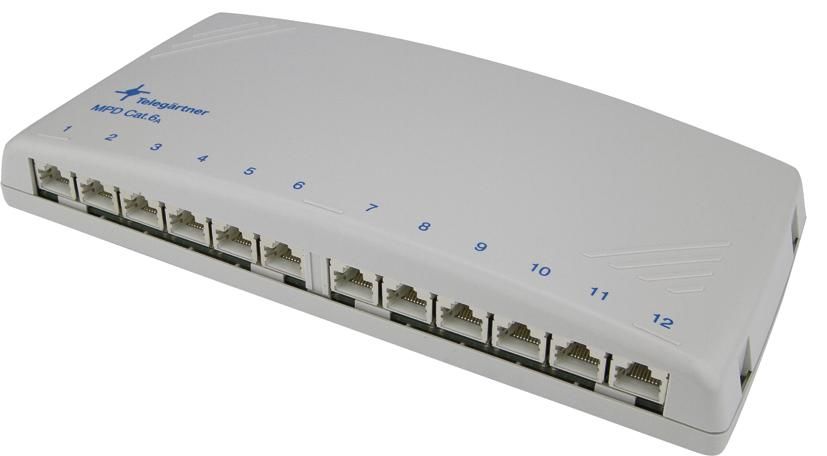

Telegärtner 100006997 TEGA Mini distributor shielded alpine white MPD12-HS K Cat.6a
|
202,26 EUR |
|
|
( 240,69 EUR incl. VAT ) ≈ £171.92 | ≈ $227.14 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 664462 |
|---|---|
| Mfg Part No: | 100006997 |
| UPC/EAN: | 4018359367770 |
| Weight: | 0.542 kg |
| Type: | 100006997 |
Product information for Telegärtner 100006997:
Small networks do not necessarily require 19' cabinets or large wall distributors. Simple, cost-effective distributors are required that can be installed discreetly and unobtrusively. The compact distributor housing can be mounted on the wall, under the desk, in furniture and, thanks to the integrated adapter, also on TH35 mounting rails in accordance with DIN EN 60715. The MPD12 mini distributor in LSA design of category 6A - with component certificate in accordance with ISO/IEC 11801 - is available for the highest transmission rates up to and including 10 Gbit/s. The RJ45 sockets are designed for at least 750 mating cycles with RJ45/RJ11/RJ12 plugs and are also suitable for applications such as PoE+ in accordance with IEEE 802.3at.
Performance features:
360 degree shield contact (shielded version) directly on the circuit board using a clamp without additional twisting of the shielding braid,
shielding cover made of stainless steel,
connection of the wires via LSA Plus insulation displacement terminals with color coding according to EIA/TIA 568A and B,
easy to connect when the twisted length of the connecting wires is kept to max. 13 mm,
Cat.6A (ISO/IEC) & Cat.6A versions with contact overbending protection: suitable for 6-pin (RJ11/12) and 8-pin plugs (RJ45), can be used alternately in the MJ sockets without additional assembly effort,
optimized contact design to avoid tear-off sparks in the contact rest area,
housing made of thermoplastic, halogen-free, with anti-slip feet,
housing cover with at least 4 cable cutouts,
port numbering on the housing cover,
cable strain relief using enclosed cable ties without screws and Special tools,
circuit board mounted horizontally, shielded versions are provided with an internal metal shielding housing. In addition, a PE cable (with M4 screw) can be attached to the circuit board.
Depending on the version, 6, 8, 12 or 16 RJ45 connection sockets or modules on a circuit board.
Fire protection class: Not relevant
Burning droplets: Not
relevant Smoke development: Not relevant
Acid development: Not relevant
Version: shielded
Color: alpine white
Short name: MPD12-HS K Cat.6A (ISO/IEC)
Performance features:
360 degree shield contact (shielded version) directly on the circuit board using a clamp without additional twisting of the shielding braid,
shielding cover made of stainless steel,
connection of the wires via LSA Plus insulation displacement terminals with color coding according to EIA/TIA 568A and B,
easy to connect when the twisted length of the connecting wires is kept to max. 13 mm,
Cat.6A (ISO/IEC) & Cat.6A versions with contact overbending protection: suitable for 6-pin (RJ11/12) and 8-pin plugs (RJ45), can be used alternately in the MJ sockets without additional assembly effort,
optimized contact design to avoid tear-off sparks in the contact rest area,
housing made of thermoplastic, halogen-free, with anti-slip feet,
housing cover with at least 4 cable cutouts,
port numbering on the housing cover,
cable strain relief using enclosed cable ties without screws and Special tools,
circuit board mounted horizontally, shielded versions are provided with an internal metal shielding housing. In addition, a PE cable (with M4 screw) can be attached to the circuit board.
Depending on the version, 6, 8, 12 or 16 RJ45 connection sockets or modules on a circuit board.
Fire protection class: Not relevant
Burning droplets: Not
relevant Smoke development: Not relevant
Acid development: Not relevant
Version: shielded
Color: alpine white
Short name: MPD12-HS K Cat.6A (ISO/IEC)
Questions & answers
What is the delivery time of Telegärtner 100006997 TEGA Mini distributor shielded alpine white MPD12-HS K Cat.6a?
The article Telegärtner 100006997 TEGA Mini distributor shielded alpine white MPD12-HS K Cat.6a is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telegärtner 100006997 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telegärtner 100006997 TEGA Mini distributor shielded alpine white MPD12-HS K Cat.6a always at the best possible price. We can give you a discount of 2% on Telegärtner 100006997 TEGA Mini distributor shielded alpine white MPD12-HS K Cat.6a if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
