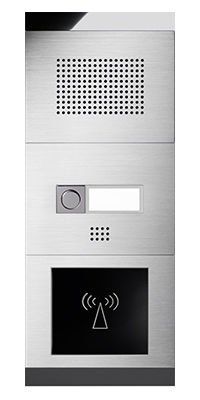

Telecom Behnke BT 50-801 Speakerphone
|
908,60 EUR |
|||||||||||
|
( 1.081,23 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 648982 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 50-801 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-801:
20-0014
Electronics compact (a/b), size 2
• Basic electronics size 2 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Small housing (no possibility to install an electronics extension)
• Dimensions (H x W x D): 198 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface Telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Can be programmed via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Illuminated labeling field
• Shiny polished call button
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module loudspeaker, Size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2408
Functional module card reader
• Cover for contactless card readers
• with recessed fastening points
• without electronics
• without LEDs
• Front panel: Plexiglas printed with a stainless steel look
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame Industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
Electronics compact (a/b), size 2
• Basic electronics size 2 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Small housing (no possibility to install an electronics extension)
• Dimensions (H x W x D): 198 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface Telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Can be programmed via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Illuminated labeling field
• Shiny polished call button
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module loudspeaker, Size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2408
Functional module card reader
• Cover for contactless card readers
• with recessed fastening points
• without electronics
• without LEDs
• Front panel: Plexiglas printed with a stainless steel look
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame Industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
Questions & answers
What is the delivery time of Telecom Behnke BT 50-801 Speakerphone ?
The article Telecom Behnke BT 50-801 Speakerphone is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BT 50-801 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BT 50-801 Speakerphone always at the best possible price. We can give you a discount of 2% on Telecom Behnke BT 50-801 Speakerphone if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Telecom Behnke BT 50-801 Speakerphone we can offer you a price of 881,34 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
