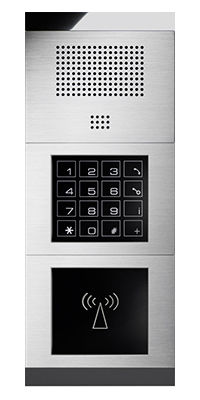

Telecom Behnke BT 50-800 Speakerphone
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 420890 |
|---|---|
| Mfg Part No: | BT 50-800 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-800:
20-0014
Electronics compact (a/b), size 2
• Basic electronics size 2 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Small housing (no possibility to install an electronics extension)
• Dimensions (H x W x D): 198 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface Telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
50-2001
module touch dial block
• Touch dial block with 16 buttons (capacitive)
• Illuminated keypad
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1101
Loudspeaker module, size 2 + microphone
• Loudspeaker size 2 (medium)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Observe volume class!
50-2408
Card reader function module
• Cover for non-contact card readers
• with recessed fastening points
• without electronics
• without LEDs
• Front panel: Plexiglas printed in a stainless steel look
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50- 9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-4908
Additional counterplate, size 1
• Counterplate size 1 as a U-shape to supplement the electronics housing with a module installation location
• Material: stainless steel
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
Electronics compact (a/b), size 2
• Basic electronics size 2 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Small housing (no possibility to install an electronics extension)
• Dimensions (H x W x D): 198 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface Telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
50-2001
module touch dial block
• Touch dial block with 16 buttons (capacitive)
• Illuminated keypad
• Free dialing possible
• 99 speed dial destinations
• Code lock function (door opener function)
• 1 additional direct call button
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1101
Loudspeaker module, size 2 + microphone
• Loudspeaker size 2 (medium)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Observe volume class!
50-2408
Card reader function module
• Cover for non-contact card readers
• with recessed fastening points
• without electronics
• without LEDs
• Front panel: Plexiglas printed in a stainless steel look
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50- 9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-4908
Additional counterplate, size 1
• Counterplate size 1 as a U-shape to supplement the electronics housing with a module installation location
• Material: stainless steel
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
