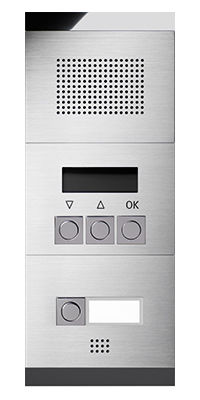

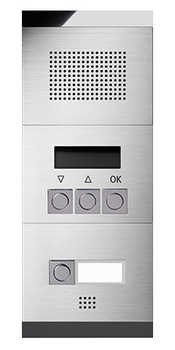

Telecom Behnke BT 50-752 Speakerphone

20-0001
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 2006
Module LC display
• LC display (green) 4 lines of 20 characters each
• Telephone book function (max. 199 entries)
• two buttons for navigation
• one button for selecting and calling the respective participant
• time-controlled message or information texts
• connection cable approx. 50 cm
• incl. anti-twist protection for correct module installation
• front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Operating temperature: -20° C to +50° C
• Electronics expansion required!!
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
Loudspeaker module, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
20-0061
Electronics extension
• Electronics to expand the functionality of basic electronics (a/b)
• To be plugged onto the basic electronics (large housing required!)
• Voice announcements: e.g. B. Welcome and information announcements when a call is triggered
• Time functions: e.g. B. Schedule for different phone number dialing or door opener functions
• Display control: required to operate the display modules (a/b connection technology) including RS232 interface for configuring texts and phone book entries on the display
• ATTENTION: Power supply required!
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
Module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness : 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
