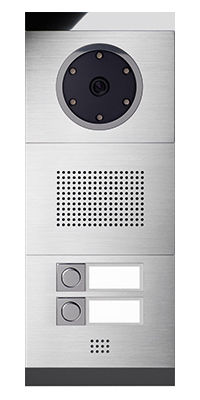

Telecom Behnke BT 50-712-IP Speakerphone
|
2.256,10 EUR |
|||||||||||
|
( 2.684,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 137999 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 50-712-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-712-IP:
50-3126
Microphone module, 2 buttons
• Microphone (bottom) + two buttons with labeling field
• Labeling field illuminated
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2940-IP
module camera (IP) B-Smart
• IP camera with B-Smart functionality (display of the live video image on smartphone/tablet possible in conjunction with TCBehnke app)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
Technical data Camera
equipment
• Power supply via PoE
• Integrated PIR motion detector
• LED lighting ring (white)
• Potential-free relay output, loadable up to max. 24 V, 2A
• Digital PTZ
• ONVIF Compatible for use with video surveillance systems from different manufacturers
Optics
• 1/10,2 cm ( 4 inch ) CMOS sensor
• Focal length 2.9 mm, F2.0
• Horizontal image angle 84°
• Vertical image angle 48°
• Illumination 1.2 - 100,000 Lux, F2. 0.0 Lux with LED switched on
• Shutter speed 1/24500s to 1/6s
Video
• Motion-JPEG, H.264 compression
• Resolution 1280 x 800 to 160 x 90 pixels
• 30 frames / s in all resolutions and compression types
Network
• IPv4/ v6, HTTP, HTTPS *, SSL / TLS *, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1 / v2c / v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.
• Password-protected web interface
• HTTPS encryption
* This product contains software developed by the OpenSSL
Project for use in the OpenSSL Toolkit
(www.openssl.org).
50-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
20-0001A-IP
electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0, 5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for phone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889 ) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP Option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE Switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833), SIP info
• Full duplex, echo cancellation (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP call station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
50-9400
Two clip sockets
• Two clip sockets (glossy polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
Microphone module, 2 buttons
• Microphone (bottom) + two buttons with labeling field
• Labeling field illuminated
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2940-IP
module camera (IP) B-Smart
• IP camera with B-Smart functionality (display of the live video image on smartphone/tablet possible in conjunction with TCBehnke app)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
Technical data Camera
equipment
• Power supply via PoE
• Integrated PIR motion detector
• LED lighting ring (white)
• Potential-free relay output, loadable up to max. 24 V, 2A
• Digital PTZ
• ONVIF Compatible for use with video surveillance systems from different manufacturers
Optics
• 1/10,2 cm ( 4 inch ) CMOS sensor
• Focal length 2.9 mm, F2.0
• Horizontal image angle 84°
• Vertical image angle 48°
• Illumination 1.2 - 100,000 Lux, F2. 0.0 Lux with LED switched on
• Shutter speed 1/24500s to 1/6s
Video
• Motion-JPEG, H.264 compression
• Resolution 1280 x 800 to 160 x 90 pixels
• 30 frames / s in all resolutions and compression types
Network
• IPv4/ v6, HTTP, HTTPS *, SSL / TLS *, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1 / v2c / v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS.
• Password-protected web interface
• HTTPS encryption
* This product contains software developed by the OpenSSL
Project for use in the OpenSSL Toolkit
(www.openssl.org).
50-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
20-0001A-IP
electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0, 5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for phone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889 ) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP Option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE Switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833), SIP info
• Full duplex, echo cancellation (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP call station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
50-9400
Two clip sockets
• Two clip sockets (glossy polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
