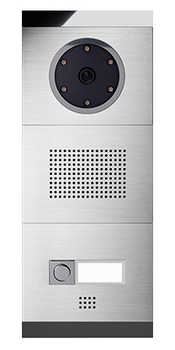

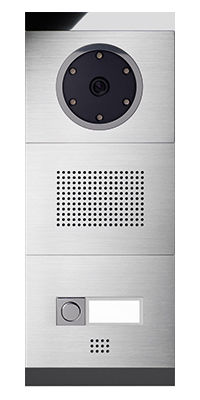

Telecom Behnke BT 50-711 Speakerphone

20-0001
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Labeling field illuminated
• Call button shiny polished
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
Loudspeaker module, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2903
Camera module (analog)
• Camera (analog), color image
• LED lighting ring (white)
• Incl. anti-twist protection for correct module installation
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
• Power supply required
Technical data camera
• 1/10,2 cm ( 4 inch ) Sony CCD chip
• Horizontal resolution 480 TVL
• Video standard PAL, FBAS (1Vss)
• Integrated lens, focal length 2.5 mm
• Minimum illumination 1.5 Lux / F 1, 4
• Electronic shutter control (ESC)
• Automatic backlight function (BLC)
• Automatic gain control (AGC)
• Camera angle 80°, fixed
50-9400
Two clip mounts
• Two clip mounts (shiny polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
50-4903
module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
