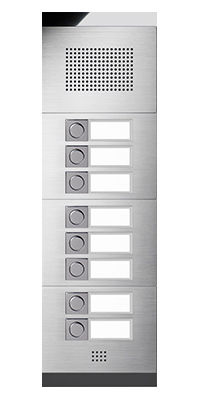

Telecom Behnke BT 50-518 Speakerphone
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 940005 |
|---|---|
| Mfg Part No: | BT 50-518 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-518:
50-3126
Microphone module, 2 buttons
• Microphone (bottom) + two buttons with labeling field
• Labeling field illuminated
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-4910
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips Made of polished stainless steel, order separately!
50-1100
Module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2031
Module 3 buttons
• Three Call buttons with labeling field
• Illuminated labeling fields
• Shiny polished call buttons
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2031
Module 3 buttons
• Three call buttons with labeling field
• Illuminated labeling fields
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (glossy polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 Alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heater (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
Microphone module, 2 buttons
• Microphone (bottom) + two buttons with labeling field
• Labeling field illuminated
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-4910
Module frame, size 4
• Installation option for four modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 388 x 118 x 3.5 mm
• Decorative strips Made of polished stainless steel, order separately!
50-1100
Module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2031
Module 3 buttons
• Three Call buttons with labeling field
• Illuminated labeling fields
• Shiny polished call buttons
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2031
Module 3 buttons
• Three call buttons with labeling field
• Illuminated labeling fields
• Call buttons shiny polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (glossy polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (shiny polished)
20-0043
Electronics compact (a/b), size 4
• Basic electronics size 4 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 Alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 378 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heater (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
Questions & answers
What is the delivery time of Telecom Behnke BT 50-518 Speakerphone ?
The article Telecom Behnke BT 50-518 Speakerphone is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BT 50-518 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BT 50-518 Speakerphone always at the best possible price. We can give you a discount of 2% on Telecom Behnke BT 50-518 Speakerphone if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Telecom Behnke BT 50-518 Speakerphone
 |
Telecom Behnke 20-9575 Behnke HSNT power supply 15 V DC, 700 mA for Triphonie rail mounting
DIN rail power supply as the power supply for basic electronics 40-0006 Triphonie. Lieske Part No.: 162162 Mfg Part No: 20-9575 |
45,24 EUR
 plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
 |
Telecom Behnke 20-9585 Behnke Power Supply 15V / 1,2 A
Power supply for various applications, 15 V, 1.2 A. Lieske Part No.: 334668 Mfg Part No: 20-9585 |
43,31 EUR
plus delivery charges
Delivery time on requestinfo_outline
|
 |
Telecom Behnke 20-0061 Behnke electronics for voice announcement extension, real time clock, RS232 interface and display control
Electronic extension on which the functions clock, voice announcement, display control and RS232 interface are included: - Real time clock for time-controlled telephone and switching functions (eg: ... Lieske Part No.: 389474 Mfg Part No: 20-0061 |
on request
-->
plus delivery charges
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Telecom Behnke 20-5211 Behnke UP housing size 4
UP-housing size 4 (Size 4 vertically for phones, horizontal). Galvanized sheet steel. External dimensions (H x W x D): 388 x 118 x 85 mm. Dimensions (H x W x D): 360 x 104 x 84 mm. Lieske Part No.: 964172 Mfg Part No: 20-5211 |
51,01 EUR
plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
