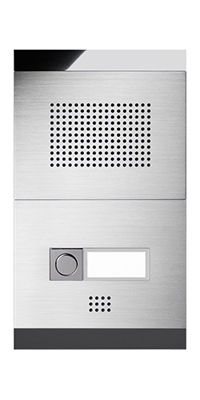

Telecom Behnke BT 50-401 Speakerphone

20-0014
Electronics compact (a/b), size 2
• Basic electronics size 2 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Small housing (no possibility to install an electronics extension)
• Dimensions (H x W x D): 198 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface Telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Can be programmed via telephone with tone dialing (DTMF) or buttons on the circuit board
• Door opener function from the inside via DTMF suffix
• Connection of various Behnke camera modules possible
50-3112
Microphone module, 1 button
• Microphone + a call button with labeling field (middle)
• Illuminated labeling field
• Shiny polished call button
• Front panel: made of stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module loudspeaker, Size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (shiny polished) for attaching to Module frame with industrial Velcro
• Material: stainless steel (shiny polished)
50-4902
Module frame, size 2
• Installation option for two modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D) : 208 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
