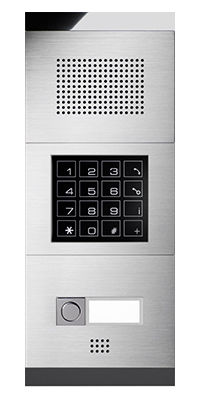

Telecom Behnke BT 50-211 Door station series 50
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 877094 |
|---|---|
| Mfg Part No: | BT 50-211 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-211:
20-0001
Electronic compact (a / b), size 3
• Basic Electronics size 3 for Door stations with integrated electronics
• Connection of up to 8 call buttons, 1 dial pad, 1 speaker, 1 microphone
• With 2 relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic extension such as voice message, real time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analog telephone network (main port) or a / b interface of a telephone system (private branch exchange)
• Full duplex operation
• Powered by a / b interface
• 1 watt booster integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various. Switching functions included (eg. As a door opener function)
• Sammelruffunktion / Redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the board
• door release function from the inside through DISA
• Connection of various Behnke camera modules possible
50-2001
Module dial pad
• dial pad with 16 keys (capacitive)
• illuminated keypad
• Free Choose possible
• 99 speed dials
• Code lock function (door opening function)
• 1 additional DSS
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-3112
Module Microphone, 1 button
• Microphone + a call button with inscription field (center)
• labeling field illuminated
• Call button polished
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
Module speakers, size 3
• Speaker Size 3 (Large)
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip versions
• Two versions clip (polished) for attaching the module frame with industrial Velcro
• Material: Stainless steel (polished)
50-4903
Module frame, size 3
• Installation option for three modules
• perpendicular
• Material: aluminum (black anodized)
• Thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• trim from polished stainless steel to be ordered separately!
Electronic compact (a / b), size 3
• Basic Electronics size 3 for Door stations with integrated electronics
• Connection of up to 8 call buttons, 1 dial pad, 1 speaker, 1 microphone
• With 2 relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility to install an electronic extension such as voice message, real time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analog telephone network (main port) or a / b interface of a telephone system (private branch exchange)
• Full duplex operation
• Powered by a / b interface
• 1 watt booster integrated (15 V = power supply required)
• Volume electronically adjustable
• Integrated heating (15 V = power supply required)
• 2 potential-free contacts with various. Switching functions included (eg. As a door opener function)
• Sammelruffunktion / Redial
• Programmable via telephone with tone dialing (DTMF) or buttons on the board
• door release function from the inside through DISA
• Connection of various Behnke camera modules possible
50-2001
Module dial pad
• dial pad with 16 keys (capacitive)
• illuminated keypad
• Free Choose possible
• 99 speed dials
• Code lock function (door opening function)
• 1 additional DSS
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-3112
Module Microphone, 1 button
• Microphone + a call button with inscription field (center)
• labeling field illuminated
• Call button polished
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
Module speakers, size 3
• Speaker Size 3 (Large)
• Front panel: Stainless steel (brushed matt)
• Thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip versions
• Two versions clip (polished) for attaching the module frame with industrial Velcro
• Material: Stainless steel (polished)
50-4903
Module frame, size 3
• Installation option for three modules
• perpendicular
• Material: aluminum (black anodized)
• Thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• trim from polished stainless steel to be ordered separately!
