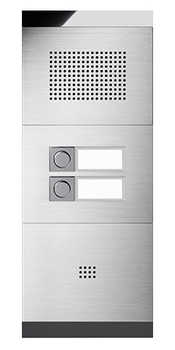

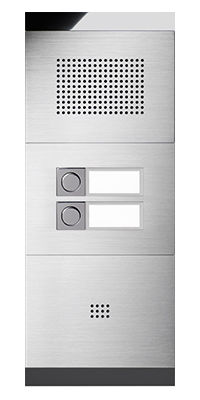

Telecom Behnke BT 50-112 Speakerphone
|
on request |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| Lieske Part No.: | 105540 |
|---|---|
| Mfg Part No: | BT 50-112 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 50-112:
20-0001
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 3100
Module Microphone
• Microphone
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2023
Module 2 buttons
• Two call buttons with labeling field
• Labeling fields illuminated
• Call buttons glossy polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (glossy polished)
50-4903
Module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
Electronics compact (a/b), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 loudspeaker, 1 microphone
• With 2 switching relays, 1 alarm input, 1 video output (for Behnke camera)
• Large housing (possibility of installing an electronic expansion such as voice announcement, real-time clock, display)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Connection: analogue telephone network (main connection) or a/b interface of a telephone system (extension)
• Full duplex operation
• Power supply via a/b interface
• 1 watt additional amplifier integrated (15 V = power supply required)
• Volume can be controlled electronically
• Integrated heater (15 V = power supply required)
• 2 Potential-free contacts with various switching functions included (e.g. door opener function)
• Collective call function / redial
• Programmable via telephone with tone dialing (MFV) or buttons on the circuit board
• Door opener function from the inside via MFV suffix
• Connection of various Behnke camera modules possible
50- 3100
Module Microphone
• Microphone
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-2023
Module 2 buttons
• Two call buttons with labeling field
• Labeling fields illuminated
• Call buttons glossy polished
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-1100
module speaker, size 3
• Speaker size 3 (large)
• Front panel: stainless steel (matt brushed)
• Material thickness: 1.5 mm
• Dimensions (H x W): 90 x 120 mm
50-9400
Two clip sockets
• Two clip sockets (polished) for attaching to the module frame with industrial Velcro
• Material: stainless steel (glossy polished)
50-4903
Module frame, size 3
• Installation option for three modules
• vertical
• Material: aluminum (black anodized)
• Material thickness: 3.5 mm
• Dimensions (H x W x D): 298 x 118 x 3.5 mm
• Order decorative strips made of shiny polished stainless steel separately!
