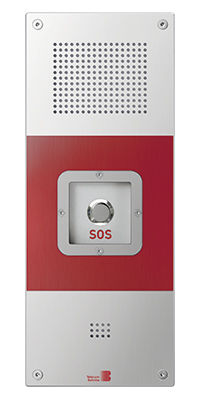

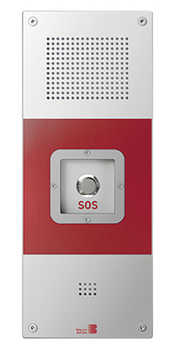

Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3
|
955,76 EUR |
|||||||||||
|
( 1.137,35 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 876962 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 40-371-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Telecom Behnke BT 40-371-IP:
• 1 alarm input (input voltage 10 V = max. 15 V =)
• RJ45 port for 100baseTEthernet, alternatively by means of screw (EIA / TIA 568 A)
• Additional RJ45 port for connecting additional IP devices such. B. IP camera (no screw)
• Large housing (possibility to install an electronic extension)
Electronics: • voice communication via Voice over IP (VoIP) to the SIP standard via the connected Ethernet LAN using a SIP-enabled PBX, a SIP provider or direct dial an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• integrated PoE switch (VLAN support) for the connection of a PoE-enabled terminal with a max. Power of 7 W
• Full-duplex operation (integrated acoustic echo cancellation)
• Sammelruffunktion / Redial
• Status / remote control messages to integrate with third-party software
• 9 voice prompts, each with up to 40 seconds long storable
• 16 MB shared memory for phonebook flash and voice prompts
• Configuration file can be saved in
Technical specifications
network
• MAC address (IEEE 802.3)
• IPv4 - Internet Protocol Version 4 (RFC 791)
• ARP - Address Resolution Protocol
• DNS - A record (RFC 1706)
• DHCP Client - Dynamic Host Configuration Protocol (RFC 2131)
• TCP - Transmission Control Protocol (RFC 93)
• UDP - User Datagram Protocol (RFC 768)
• RTP - Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP - Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP - Simple Network Time Protocol (RFC 2030)
• SIPv2 - Session Initiation Protocol version 2 (RFC 3261, 3262.3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisionierung via DHCP Option 66 or send us a configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated PoE switch with support for tagged VLANs
Speech codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833), SIP Info
• Full-duplex, echo suppression (AEC)
• speaker volume in 10 levels configurable
• microphone sensitivity to 10 levels configurable
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
. • Max Power Consumption: 12 W
• SIP station: 5 W
• device to PORT2: max. 7 W
• Max. Switching capacity of relay: 2 A / 30 VDC, 0.5 A / 40VAC
• Input voltage alarm input: 10 V max. 15 V
• Operating temperature: -20 ° C to + 50 ° C
• Speaker Size 3 (Large)
• A button (behind glass)
• Press the colored border (red, blue, green, yellow or orange)
• engraving optional
• Microphone
• Front panel: Aluminium (continuous), midsection red printed
• Material thickness: 4 mm
• Dimensions (H x W x D): 300 x 120 x 76 mm
Questions & answers
What is the delivery time of Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3?
The article Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BT 40-371-IP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3 always at the best possible price. We can give you a discount of 2% on Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Telecom Behnke BT 40-371-IP Emergency call station Series 40, size 3 we can offer you a price of 927,09 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
