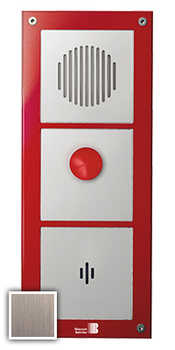

Telecom Behnke BT 21-331-IP Emergency call station series 20
|
1.008,70 EUR |
|||||||||||
|
( 1.200,35 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 836220 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 21-331-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Emergency Phones from Telecom BehnkeFurther products in category Emergency Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 21-331-IP:
20-4315 frame, size 3 • Installation option for three modules • vertically
• Incl.Twist protection for the correct function module mounting
• Front panel: Aluminium in RAL 3000 blazing red painted, vertical
• Material thickness: 4 mm
• Dimensions (H x W x D): 300 x 120 x 4 mm 21-2411 module 1 button • An emergency -Pilztaste (center) • optional with engraving
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm ??20-0001A-IP electronics Compact (SIP), size 3 • Basic Electronics size 3 for Door stations with integrated electronics • Connection of up to 8 call buttons, 1 dial pad, 1 display, 1 speaker, 1 microphone • 2 switching relays (max. breaking capacity: 2 A / 30 VDC, 0.5 A / 40VAC): 1 NO contact, 1 changeover contact • 1 alarm input (input voltage 10 V = max. 15 V DC) • RJ45 port for 100baseTEthernet, alternatively by means of screw (EIA / TIA 568 A) • Additional RJ45 port for connecting additional IP devices such. B. IP camera ( no screw) • Large housing (possibility to install an electronic extension) • Dimensions (H x W x D): 288 x 108 x 72 mm Electronics: • voice communication via Voice over IP (VoIP) to the SIP standard via the connected Ethernet LAN using a SIP-enabled PBX, a SIP provider or direct dial an IP address • Configuration and software updates via web browser • Power supply: Power over Ethernet (PoE) IEEE 802.3af • integrated PoE switch (VLAN support) for the connection of a PoE-enabled terminal with a max. Power of 7 W • full-duplex operation (integrated acoustic echo cancellation) • Sammelruffunktion / Redial • status / remote control messages to integrate with third-party software • 9 voice prompts, each with up to 40 seconds long storable • 16 MB shared flash memory for phone book and voice prompts • Configuration stored in file
Technical specifications
network
• MAC address (IEEE 802.3)
• IPv4 - Internet Protocol Version 4 (RFC 791)
• ARP - Address Resolution Protocol
• DNS - A record (RFC 1706)
• DHCP Client - Dynamic Host Configuration Protocol (RFC 2131)
• TCP - Transmission Control Protocol (RFC 93)
• UDP - User Datagram Protocol (RFC 768)
• RTP - Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP - Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP - Simple Network Time Protocol (RFC 2030)
• SIPv2 - Session Initiation Protocol version 2 (RFC 3261, 3262.3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisionierung via DHCP Option 66 or send Configured Server
• Backup SIP server configured
• Firmware update via web interface
• Integrated PoE switch with support for tagged VLANs voice codecs • G.711 (A-law, µ-law) • G726 (32 kbps ) • G.721 • DTMF in-band and out-of-band (RFC 2833) SIP Info • Full-duplex, echo suppression (AEC) • speaker volume in 10 levels configurable • microphone sensitivity to 10 levels configurable Electrical characteristics • Power supply via Power over Ethernet (PoE) according to IEEE802.3af • Max power:. 12 W • SIP station: 5 W • device to PORT2: max.
7 W
• Max. Switching capacity of relay: 2 A / 30 VDC, 0.5 A / 40VAC
• Input voltage alarm input: 10 V max. 15 V
• Operating temperature: -20 ° C to + 50 ° C 21-1100-IP module loudspeakers, size 3 • Speaker size 3 (Large)
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm ??21-3100 module Microphone • Microphone
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
• Incl.Twist protection for the correct function module mounting
• Front panel: Aluminium in RAL 3000 blazing red painted, vertical
• Material thickness: 4 mm
• Dimensions (H x W x D): 300 x 120 x 4 mm 21-2411 module 1 button • An emergency -Pilztaste (center) • optional with engraving
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm ??20-0001A-IP electronics Compact (SIP), size 3 • Basic Electronics size 3 for Door stations with integrated electronics • Connection of up to 8 call buttons, 1 dial pad, 1 display, 1 speaker, 1 microphone • 2 switching relays (max. breaking capacity: 2 A / 30 VDC, 0.5 A / 40VAC): 1 NO contact, 1 changeover contact • 1 alarm input (input voltage 10 V = max. 15 V DC) • RJ45 port for 100baseTEthernet, alternatively by means of screw (EIA / TIA 568 A) • Additional RJ45 port for connecting additional IP devices such. B. IP camera ( no screw) • Large housing (possibility to install an electronic extension) • Dimensions (H x W x D): 288 x 108 x 72 mm Electronics: • voice communication via Voice over IP (VoIP) to the SIP standard via the connected Ethernet LAN using a SIP-enabled PBX, a SIP provider or direct dial an IP address • Configuration and software updates via web browser • Power supply: Power over Ethernet (PoE) IEEE 802.3af • integrated PoE switch (VLAN support) for the connection of a PoE-enabled terminal with a max. Power of 7 W • full-duplex operation (integrated acoustic echo cancellation) • Sammelruffunktion / Redial • status / remote control messages to integrate with third-party software • 9 voice prompts, each with up to 40 seconds long storable • 16 MB shared flash memory for phone book and voice prompts • Configuration stored in file
Technical specifications
network
• MAC address (IEEE 802.3)
• IPv4 - Internet Protocol Version 4 (RFC 791)
• ARP - Address Resolution Protocol
• DNS - A record (RFC 1706)
• DHCP Client - Dynamic Host Configuration Protocol (RFC 2131)
• TCP - Transmission Control Protocol (RFC 93)
• UDP - User Datagram Protocol (RFC 768)
• RTP - Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP - Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP - Simple Network Time Protocol (RFC 2030)
• SIPv2 - Session Initiation Protocol version 2 (RFC 3261, 3262.3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisionierung via DHCP Option 66 or send Configured Server
• Backup SIP server configured
• Firmware update via web interface
• Integrated PoE switch with support for tagged VLANs voice codecs • G.711 (A-law, µ-law) • G726 (32 kbps ) • G.721 • DTMF in-band and out-of-band (RFC 2833) SIP Info • Full-duplex, echo suppression (AEC) • speaker volume in 10 levels configurable • microphone sensitivity to 10 levels configurable Electrical characteristics • Power supply via Power over Ethernet (PoE) according to IEEE802.3af • Max power:. 12 W • SIP station: 5 W • device to PORT2: max.
7 W
• Max. Switching capacity of relay: 2 A / 30 VDC, 0.5 A / 40VAC
• Input voltage alarm input: 10 V max. 15 V
• Operating temperature: -20 ° C to + 50 ° C 21-1100-IP module loudspeakers, size 3 • Speaker size 3 (Large)
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm ??21-3100 module Microphone • Microphone
• Incl.Twist protection for the correct module mounting
• Front panel: Aluminium in V2A design
• material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
