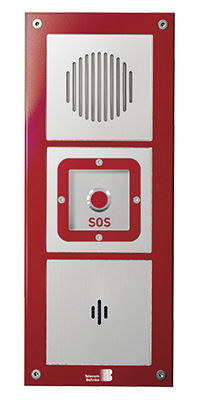

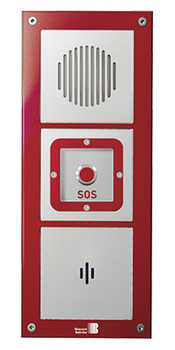

Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000
|
959,61 EUR |
|||||||||||
|
( 1.141,94 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 705573 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BT 20-371-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Emergency Phones from Telecom BehnkeFurther products in category Emergency Phones
All products of Telecom Behnke
Product information for Telecom Behnke BT 20-371-IP:
20-4315
frame, size 3
• Installation option for three modules
• vertical
• Incl. anti-twist protection for correct functional module installation
• Front panel: aluminum painted in RAL 3000 “fire red”, vertical
• Material thickness: 4 mm
• Dimensions (H x W x D ): 300 x 120 x 4 mm
20-2014
Module 1 button
• A call button (behind glass)
• optionally with color frame (red, blue, green, yellow or orange)
• optionally with colored button sticker (red, blue, green, yellow or Orange)
• optionally with engraving
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-0001A-IP
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 keypad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 NO contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable end device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for telephone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web -Interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833 ), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP Intercom station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50 ° C
20-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-3100
Module Microphone
• Microphone
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
frame, size 3
• Installation option for three modules
• vertical
• Incl. anti-twist protection for correct functional module installation
• Front panel: aluminum painted in RAL 3000 “fire red”, vertical
• Material thickness: 4 mm
• Dimensions (H x W x D ): 300 x 120 x 4 mm
20-2014
Module 1 button
• A call button (behind glass)
• optionally with color frame (red, blue, green, yellow or orange)
• optionally with colored button sticker (red, blue, green, yellow or Orange)
• optionally with engraving
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-0001A-IP
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 keypad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 NO contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable end device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for telephone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web -Interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833 ), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP Intercom station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50 ° C
20-1100-IP
module loudspeaker, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-3100
Module Microphone
• Microphone
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
Questions & answers
What is the delivery time of Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000?
The article Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BT 20-371-IP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000 always at the best possible price. We can give you a discount of 2% on Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Telecom Behnke BT 20-371-IP IP Emergency Phone 3-fold frame with red RAL 3000 we can offer you a price of 930,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
