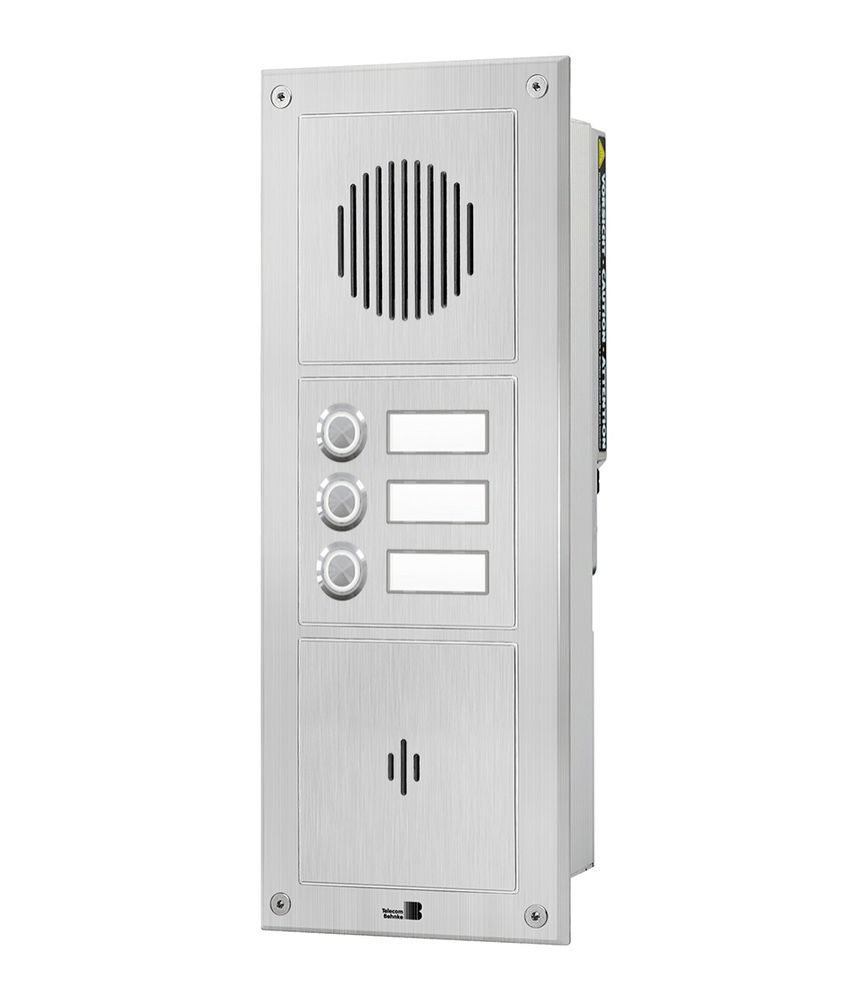

Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP
|
1.005,81 EUR |
|||||||||||
|
( 1.196,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 636656 | ||||||||||
| Mfg Part No: | BS 20-113-IP | ||||||||||
| Weight: | 0.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke BS 20-113-IP:
20-0001A-IP
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• Additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable end device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for phone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889 ) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP intercom station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
20-2031
Module 3 buttons
• Three call buttons with labeling field
• Incl. anti-twist protection for correct module installation
• Illuminated labeling field
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-1100-IP
Loudspeaker module, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-3100
Microphone module
• Microphone
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-4310
frame, size 3
• Installation option for three modules
• vertical
• Incl. anti-twist protection for the correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 300 x 120 mm
Electronics compact (SIP), size 3
• Basic electronics size 3 for door stations with integrated electronics
• Connection of up to 8 call buttons, 1 touchpad, 1 display, 1 loudspeaker, 1 microphone
• 2 switching relays (max. switching capacity: 2 A / 30VDC, 0.5 A / 40VAC): 1 make contact, 1 changeover contact
• 1 alarm input (input voltage 10 V= to max. 15 V=)
• RJ45 port for 100baseTEthernet, alternatively via screw terminal (EIA / TIA 568 A)
• Additional RJ45 port for connecting additional IP devices, e.g. B. IP camera (no screw terminals)
• Large housing (possibility of installing an electronics extension)
• Dimensions (H x W x D): 288 x 108 x 72 mm
Electronics: • Voice connection via Voice over IP (VoIP) according to the SIP standard via the connected Ethernet LAN using a SIP-capable telephone system, a SIP provider or direct dialing of an IP address
• Configuration and software updates via web browser
• Power supply: Power over Ethernet (PoE) according to IEEE 802.3af
• Integrated PoE -Switch (VLAN support) for connecting another PoE-capable end device with a maximum power consumption of 7 W
• Full duplex operation (integrated acoustic echo suppression)
• Collective call function / redial
• Status / remote control messages for integration with third-party software
• 9 voice announcements each Can be stored for up to 40 seconds
• 16 MB shared flash memory for phone book and voice announcements
• Configuration can be saved in a file
Technical data
network
• MAC address (IEEE 802.3)
• IPv4 – Internet Protocol Version 4 (RFC 791)
• ARP – Address Resolution Protocol
• DNS – A record (RFC 1706)
• DHCP Client – Dynamic Host Configuration Protocol (RFC 2131)
• TCP – Transmission Control Protocol (RFC 93)
• UDP – User Datagram Protocol (RFC 768)
• RTP – Real Time Protocol (RFC 1889 ) (RFC 1890)
• RTCP – Real Time Control Protocol (RFC 1889)
• DiffServ (RFC 2475), Type of Service (RFC 791, RFC 1349)
• SNTP – Simple Network Time Protocol (RFC 2030)
• SIPv2 – Session Initiation Protocol Version 2 (RFC 3261, 3262,3263, 3264)
• SIP in NAT networks (STUN)
• Autoprovisioning via DHCP option 66 or via configured server
• Backup SIP server configurable
• Firmware update via web interface
• Integrated POE switch with support for tagged VLANs
Voice codecs
• G.711 (A-law, µ-law)
• G726 (32 kbps)
• G.721
• DTMF in-band and out-of-band (RFC 2833), SIP info
• Full duplex, echo suppression (AEC)
• Speaker volume configurable in 10 levels
• Microphone sensitivity configurable in 10 levels
Electrical characteristics
• Power supply via Power over Ethernet (PoE) according to IEEE802.3af
• Max. power consumption: 12 W
• SIP intercom station: 5 W
• Device on PORT2: max. 7 W
• Max. switching capacity of the relays: 2 A / 30VDC, 0.5 A /40VAC
• Input voltage alarm input: 10 V to max. 15 V
• Operating temperature: -20° C to +50° C
20-2031
Module 3 buttons
• Three call buttons with labeling field
• Incl. anti-twist protection for correct module installation
• Illuminated labeling field
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-1100-IP
Loudspeaker module, size 3
• Loudspeaker size 3 (large)
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-3100
Microphone module
• Microphone
• Incl. anti-twist protection for correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 90 x 90 mm
20-4310
frame, size 3
• Installation option for three modules
• vertical
• Incl. anti-twist protection for the correct module installation
• Front panel: aluminum
• Material thickness: 4 mm
• Dimensions (H x W): 300 x 120 mm
Questions & answers
What is the delivery time of Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP?
The article Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Telecom Behnke BS 20-113-IP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP always at the best possible price. We can give you a discount of 2% on Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP we can offer you a price of 975,64 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Telecom Behnke BS 20-113-IP Speakerphone BT 20-113 IP
 |
Telecom Behnke 20-9067 Rain visor, size 3
• Pairing Frame size 3 • only with flush mounting or installation in cavity • rain cover made ??of aluminum in RAL 9006 powder-coated • Stainless steel frame in RAL 9006 powder-coated • ... Lieske Part No.: 158807 Mfg Part No: 20-9067 |
106,84 EUR
 plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
 |
Telecom Behnke 20-9110A Call button
• Call button, illuminated (green) • Diameter: 19 mm • Material: Stainless steel • As spare parts for complete equipment series 20,30 and 40 • As a direct call at producing its own front panel Lieske Part No.: 158812 Mfg Part No: 20-9110A |
39,46 EUR
plus delivery charges
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
|
 |
Telecom Behnke 20-5200 Behnke UP box size 3
UP-box size 3 (size 3 vertical for phones, horizontal). Galvanized sheet steel. External dimensions (H x W x D): 298 x 118 x 85 mm. Dimensions (H x W x D): 270 x 104 x 84 mm. Lieske Part No.: 816610 Mfg Part No: 20-5200 |
43,31 EUR
plus delivery charges
Delivery time on requestinfo_outline
|
