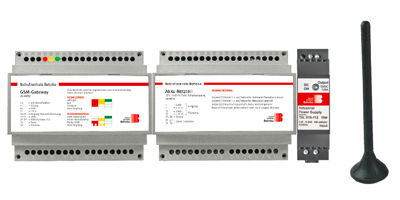

Telecom Behnke 20-0097 GSM set 3
|
on request |
|
| Delivery time from supplier's stock (ca.) 10 workdaysinfo_outline | |
| Lieske Part No.: | 158506 |
|---|---|
| Mfg Part No: | 20-0097 |
| Weight: | 0.5 kg |
Further Door Phones from Telecom BehnkeFurther products in category Door Phones
All products of Telecom Behnke
Product information for Telecom Behnke 20-0097:
20-9573 DIN rail • DIN rail • Input voltage: 100- 240 VAC • Output voltage: 12 V DC • Output current: 1.25A • 1.5 subunits (1.5 TE) 20-0092 GSM Gateway • for DIN rail mounting (6 modules) • 1 A / B port (27 mA / 24 V) for the emergency telephone • 2 a / b ports (together 27 mA / 24 V) for the engine room cabin telephone and the fire brigade interface • Connected via screw terminals • Antenna connector: SMA • Supply voltage : 12 VDC (9 V to 18 V), min. 4 W, max. 1.25 A • Adjustable stopping relay: max. 30 VDC, max. 2 A, 60 W;
Max.30 VAC, max. 2 A 6.5 VA
• Automatic shutdown of the elevator at the GSM network failure or power outage
• Emergency supply: 27 mA loop current, ringing voltage 31 VAC, 50 Hz
• LED display for signal strength and error codes
• 1 alarm input for battery monitoring
• voice message for internal message
• GSM network: Quadband 20-0093 antenna for GSM gateway • Includes connection cable (2 m). • SMA connector • with magnetic 20-9574 battery power supply • Battery power supply • Input voltage: 12-15 V • Input current: max , 1.25 A • Output voltage: 12-15 V (11 V in battery mode) • Capacity: 600mAh when discharged over 24 hours • Alarm in battery capacity below 70% • alarm in case of lack of input voltage (potential-free NC) • protection against deep discharge • overcharge protection • 700mA fuse for input circuit • 1.25 A fuse for battery operation. • 1.5A el fuse for battery operation • Housing material: plastic (fire protection class UL94 V0) • 6 partial units (6 TE) • NOTE: DIN rail 20 -9573 required!
Max.30 VAC, max. 2 A 6.5 VA
• Automatic shutdown of the elevator at the GSM network failure or power outage
• Emergency supply: 27 mA loop current, ringing voltage 31 VAC, 50 Hz
• LED display for signal strength and error codes
• 1 alarm input for battery monitoring
• voice message for internal message
• GSM network: Quadband 20-0093 antenna for GSM gateway • Includes connection cable (2 m). • SMA connector • with magnetic 20-9574 battery power supply • Battery power supply • Input voltage: 12-15 V • Input current: max , 1.25 A • Output voltage: 12-15 V (11 V in battery mode) • Capacity: 600mAh when discharged over 24 hours • Alarm in battery capacity below 70% • alarm in case of lack of input voltage (potential-free NC) • protection against deep discharge • overcharge protection • 700mA fuse for input circuit • 1.25 A fuse for battery operation. • 1.5A el fuse for battery operation • Housing material: plastic (fire protection class UL94 V0) • 6 partial units (6 TE) • NOTE: DIN rail 20 -9573 required!
